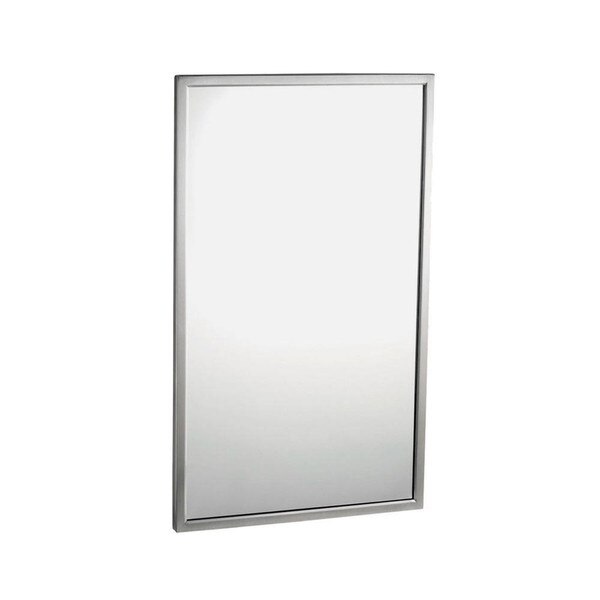

  • Bobrick B-2908-1836 Satin Stainless Steel, Welded-Frame, 18" by 36", Tempered Glass Mirror

Bobrick B-2908-1836 Satin Stainless Steel, Welded-Frame, 18" by 36", Tempered Glass Mirror

(0) No Reviews yet
$201.68
SKU: B-2908-1836

Ships in 3 business days from manufacturer.

One-piece, roll-formed 3/4" x 3/4" (19 x 19mm) angle-frame. Type-304 stainless steel angle with satin finish. Corners heliarc welded ground and polished smooth. Beveled frame edge at mirror for improved appearance. 1/4" (6mm) tempered glass mirror. Galvanized steel back. Secured to concealed wall hanger with theft-resistant mounting. Tempered glass mirrors resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors. Bobrick uses the highest quality tempered glass mirrors. Modest distortion or heat-generated markings are normal in the tempered glass mirror manufacturing process.


  • 18" W x 36" H

  • 18-8, Type-304, heavy-gauge stainless steel, 3/4" x 3/4" (19 x 19mm) angle with vertical-grain satin finish

  • One-piece, rollformed construction forms continuous integral stiffener on all sides



Measurement Diagram:


Brand: Bobrick
Manufacturer Model No.: B-2908 1836
Mount: Flat
Frame Material: Satin Stainless Steel
Frame Type: Angle Frame (Welded Corners)
Glazing: 1/4" Tempered Glass
Overall Dimensions: 18" Wide x 36" Tall x 3/4" Deep
Shipping Dimensions: 40" Length x 22" Width x 4" Height
Shipping Weight: 22 lbs.
UPC / GTIN: 716954009036
Country of Manufacture: USA
Warranty: 15 Yr. Against Silver Spoilage

Architectural Specifications:



Mirror shall have a one-piece Type-304 stainless steel angle frame, 3/4" x 3/4" (19 x 19mm) with continuous integral stiffener on all sides and beveled front to hold frame tightly against mirror; corners shall be welded, ground, and polished smooth; all exposed surfaces shall have satin finish with vertical grain. Mirror shall be __________________________ (insert one: polished stainless steel, tempered glass, or laminated glass). All edges shall be protected by plastic filler strips. Backs of all glass mirrors shall be protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. Galvanized steel back shall have integral horizontal hanging brackets located at top for mounting on concealed rectangular wall hanger.
