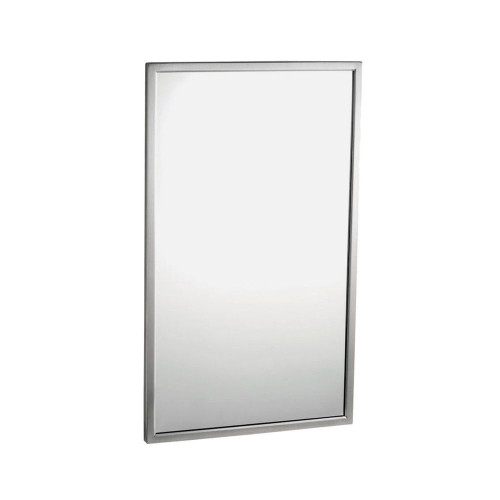

One-piece, roll-formed 3/4" x 3/4" (19 x 19mm) angle-frame. Type-304 stainless steel angle with satin finish. Corners heliarc welded ground and polished smooth. Beveled frame edge at mirror for improved appearance. 1/4" (6mm) tempered glass mirror. Galvanized steel back. Secured to concealed wall hanger with theft-resistant mounting. Tempered glass mirrors resist breakage and provide a measure of safety from broken glass, but differ in color and reflective quality from standard glass mirrors. Bobrick uses the highest quality tempered glass mirrors. Modest distortion or heat-generated markings are normal in the tempered glass mirror manufacturing process.
- 24" W x 36" H
- 18-8, Type-304, heavy-gauge stainless steel, 3/4" x 3/4" (19 x 19mm) angle with vertical-grain satin finish
- One-piece, rollformed construction forms continuous integral stiffener on all sides
Measurement Diagram:
Architectural Specification:
Mirror shall have a one-piece Type-304 stainless steel angle frame, 3/4" x 3/4" (19 x 19mm) with continuous integral stiffener on all sides and beveled front to hold frame tightly against mirror; corners shall be welded, ground, and polished smooth; all exposed surfaces shall have satin finish with vertical grain. Mirror shall be __________________________ (insert one: polished stainless steel, tempered glass, or laminated glass). All edges shall be protected by plastic filler strips. Backs of all glass mirrors shall be protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. Galvanized steel back shall have integral horizontal hanging brackets located at top for mounting on concealed rectangular wall hanger.
