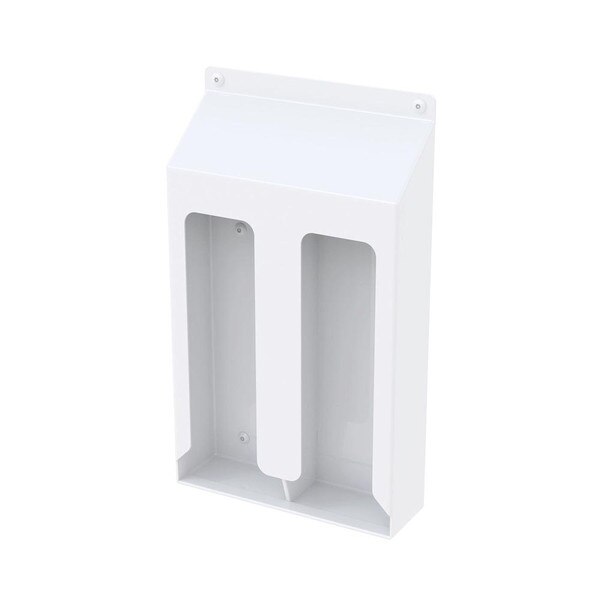

Bobrick B-9881 Ligature Resistant Vertical Bay C-Fold Paper Holder
Ligature Resistant (LR) Vertical Bay Holder shall be type 304 stainless steel; exposed surfaces shall be powder coated white. Unit shall be capable of dispensing a total of 400 (200 per bay) C-fold paper towels measuring 3-1/8" to 3-5/8" (79 to 97mm) wide. Open bay design deters use as a ligature point. Furnished with one (1) 5/32" hex bit for center reject pin and six (6) 1/4"-20 UNC tamper resistant screws for use with wall anchors (not included).
Paper Holder is fabricated from 16-gauge, type 304 stainless steel with all exposed surfaces powder coated white
Units dispenses C-fold paper towels 3-1/8" to 3-5/8" (79-97mm)
Capacity: 200 C-fold paper towels per bay
Sloping top and open bays discourage use as a point of ligature
Open bay design eliminates the need for a lock and has no moving parts that can be vandalized

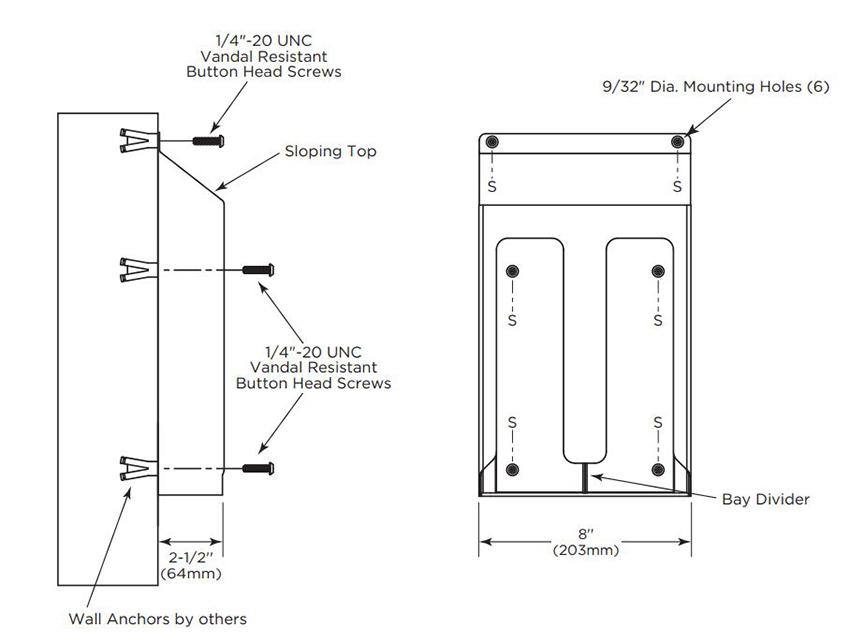

Measurement Diagram:
| Type: | Ligature Resistant (LR) C-fold, multi-fold paper towel dispenser |
| Primary Material: | Type 304 Stainless Steel |
| Color / Finish: | White Powder Coat |
| Installation Type: | Wall / Surface |
| Capacity: | Type 304 Stainless Steel |
| Power: | N/A |
| ADA Compliant: | Yes |
| Overall Dimensions: | 8" Wide x 10-7/8" Tall x 2-1/2" Deep |
| Rough-in: | N/A (Surface Mount) |
| Net Weight: | Not published |
| Shipping Dimensions: | 12" Length x 9" Width x 3" Deep |
| Shipping Weight: | Not published |
| Manufacturer Model No.: | B-9881 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published |
| Warranty: | 1 Year Manufacturer's Limited |
Architectural Specifications:
Vertical Bay Holder shall be type 304 stainless steel; exposed surfaces shall be powder coated white. Unit shall be capable of dispensing a total of 400 (200 per bay) C-fold paper towels measuring 3-1/8" to 3-5/8" (79 to 97mm) wide. Open bay design deters use as a ligature point.
