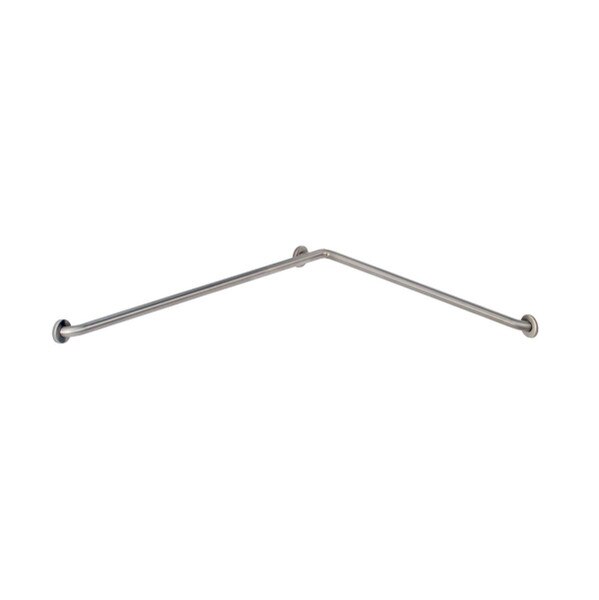

  • Bobrick B-6897 42" X 54" x 1-1/2" O.D. 90 Degree Two-Wall Grab Bar

Bobrick B-6897 42" X 54" x 1-1/2" O.D. 90 Degree Two-Wall Grab Bar

(0) No Reviews yet
$335.95
SKU: B-6897

IN STOCK

2 available for immediate shipment

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

Install this grab bar in every bathroom to assist with those who may struggle to stand up or sit down. Its innovative angular design fits around the toilet to provide added assistance to those in need.


  • 42" x 54" Two-Wall grab bar with 1-1/2 O,D.

  • Designed to fit into the corner of a compartment, tub, or shower

  • Can support loads in excess of 900 pounds (408kg) if properly installed

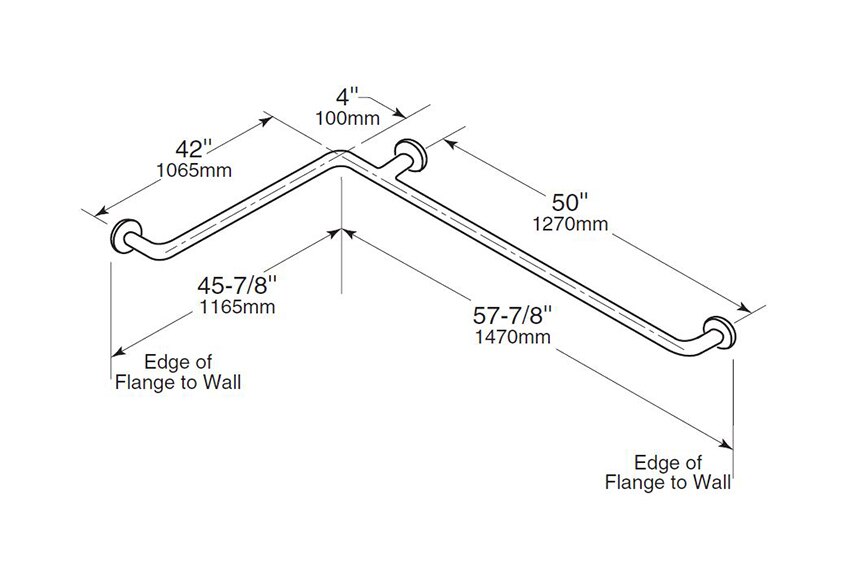

Measurement Diagram:


Type: Corner Grab Bar
Primary Material: Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/2"
Rated Width: 42"
Rated Length: 54"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 900 lbs.
Bariatric: Yes
Antimicrobial: No
Overall Dimensions: 57-7/8" Wide x 3-1/4" Tall x 45-7/8" Deep
Shipping Dimensions: 58" Length x 46" Width x 4" Height
Shipping Weight: 9.5 lbs.
UPC / GTIN: Not Published
Manufacturer Model No.: B-6897
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited

Architectural Specifications:



Grab bar shall be type-304 stainless steel with satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/2" (38mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2mm) thick stainless steel plate, 2" x 3-1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22 gauge (0.8mm), 3-1/4" (85mm) diameter x 1/2" (13mm) deep, and shall snap over mounting flange to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.
