Piatto

ASI Simplicity™ 10-64696AC Recessed Auto Towel Disp & Waste Bin, Stainless Steel, 120V

SKU: 10-64696AC
(No reviews yet) Write a Review
$846.20
Adding to cart… The item has been added
Availability:
Ships in 35 business days from manufacturer.
Free shipping image
Important note icon

Completely FLUSH mount. No projection! Identical to Piatto 10-64696AC-00 but with a stainless steel finish (not phenolic)

Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Waste receptacle has a capacity of 9.9 gallons (37.3 L). Powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
  • Seamless construction, crisp lines and minimalistic design
  • "Touch Free" Dual Paper Towel Dispenser
  • Cabinet made of 20 gauge Type 304 Stainless Steel - Satin Finish
  • Roll Towels - up to 800 ft. [244M] Length / 9.9 Gal. (37.3 L) Waste Capacity
  • Automatic - AC - 110 - 240V - "No Touch"
  • Recessed

Certifications:

Buy American Act Compliant
This paper towel dispenser is ADA compliant when installed according to manufacturer's guidelines

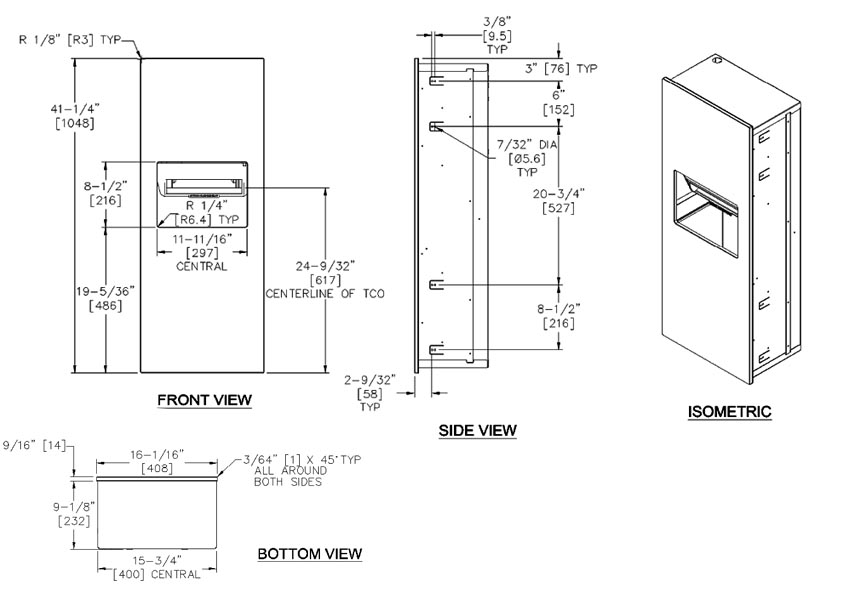

Measurement Diagram:

Measurements for ASI 10-64696AC-00 Recessed Paper Towel Dispenser and Trash Bin.
Architectural Specification:

Proximity sensing no-touch unit holds and dispenses one 8" diameter [Ø203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [Ø102] and automatically changees over to main roll when finished with stub roll when feed tabs are properly engauged. Waste receptacle has a capacity of 9.9 gallons (37.3 L). Powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

!
