Piatto

ASI Piatto™ 10-6474-41 Recessed Waste Receptacle, Matte Black

SKU: 10-6474-41
(No reviews yet) Write a Review
$1,132.42
Adding to cart… The item has been added
Availability:
Ships in 35 business days from manufacturer.
Free shipping image
Important note icon

Completely FLUSH mount. No projection!
IMPORTANT: As this product is made to order, the manufacturer does not allow returns or cancellations once production has started.

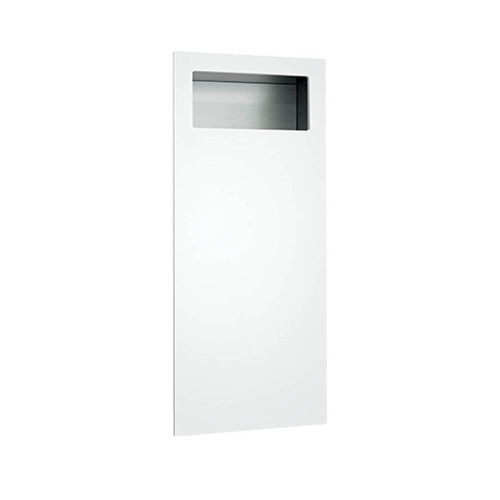

This sophisticated waste receptacle is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
  • Waste receptacle holds 12 gal. (46 L) of washroom waste materials

Certifications:

Buy American Act Compliant
This product is ADA compliant when installed according to manufacturer's guidelines

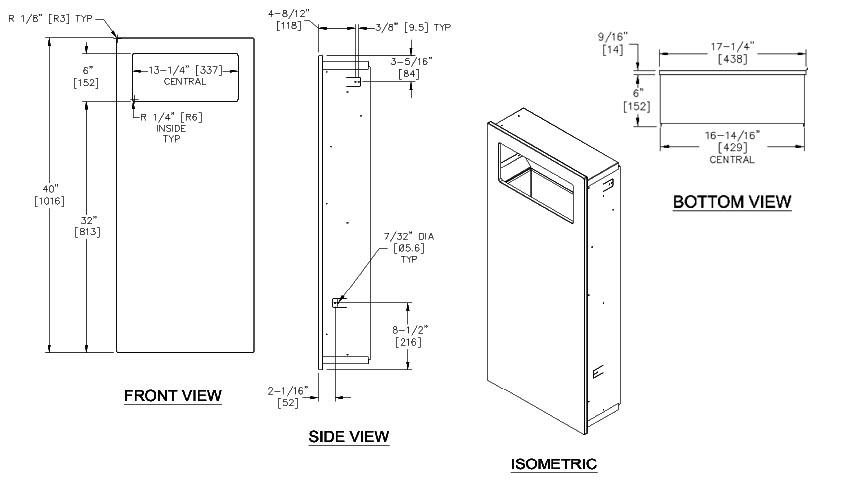

Measurement Diagram:

Measurements for ASI 10-6474-41 Recessed Waste Receptacle
Architectural Specification:

Piatto™ Collection Waste Receptacle shall have a waste capacity of 12 gallons (46 liters). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with three (3) zero-clearance concealed cabinet hinges and shall be held closed with a springpin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.

!
