Completely FLUSH mount. No projection!
This sophisticated 3-in-1 cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
- Holds and dispenses 500 standard multi-fold or 400 standard C-fold paper towels.
- <15 second automatic hand dryer with a 5-year warranty
- 110-120V
- Waste Receptacle has a waste capacity of 6.8 gal (26 L)
Certifications:

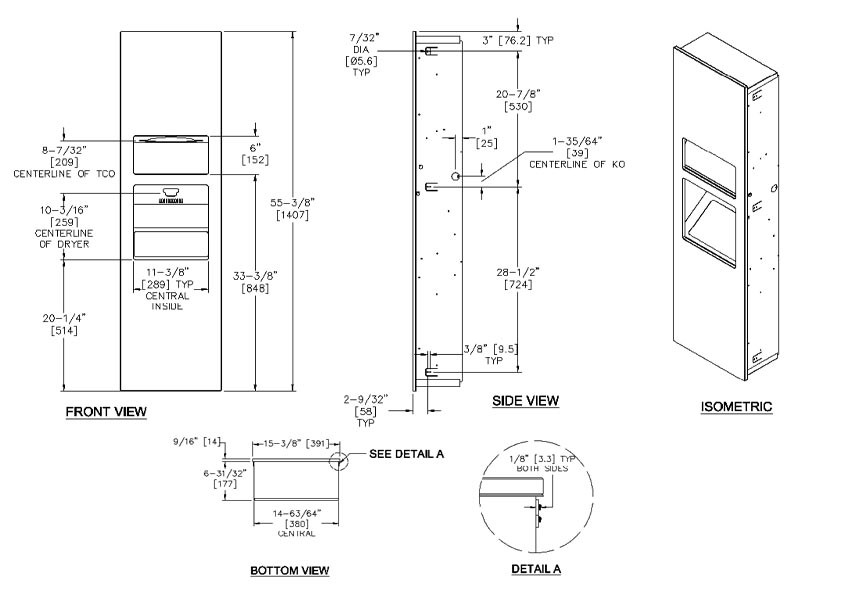

Measurement Diagram:
