ASI Piatto™ 10-6467-00 Recessed Towel Dispenser & Waste Bin, White

SKU: 10-6467-00
(No reviews yet) Write a Review
$972.91
Availability:
Ships in 35 business days from manufacturer.
Adding to cart… The item has been added
Free shipping image
Important note icon

Completely FLUSH mount. No projection!"
IMPORTANT: As this product is made to order, the manufacturer does not allow returns or cancellations once production has started.

This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
  • Dispenses 600 C-fold or 800 multi-fold paper towels
  • 4.2 gal. (16 L) stainless steel waste receptacle has a rolled edge finger hole for easy servicing.

Certifications:

Buy American Act Compliant
This paper towel dispenser is ADA compliant when installed according to manufacturer's guidelines

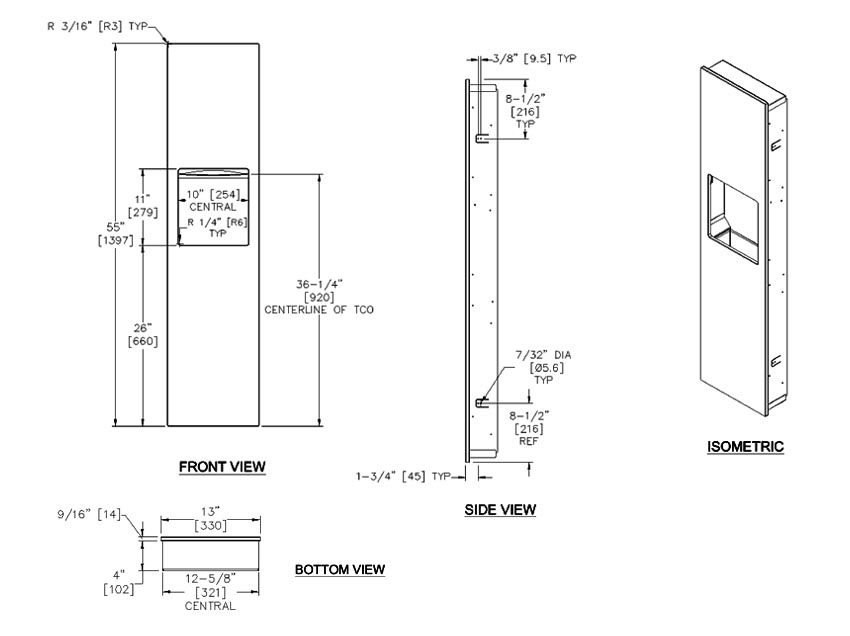

Measurement Diagram:

Measurements for ASI 10-6467-00 Recessed Paper Towel Dispenser and Trash Bin.
Architectural Specification:

Piatto™ Collection Paper Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels and shall have a waste capacity of 4.24 gallons (16 liters). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with four (4) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.

!
