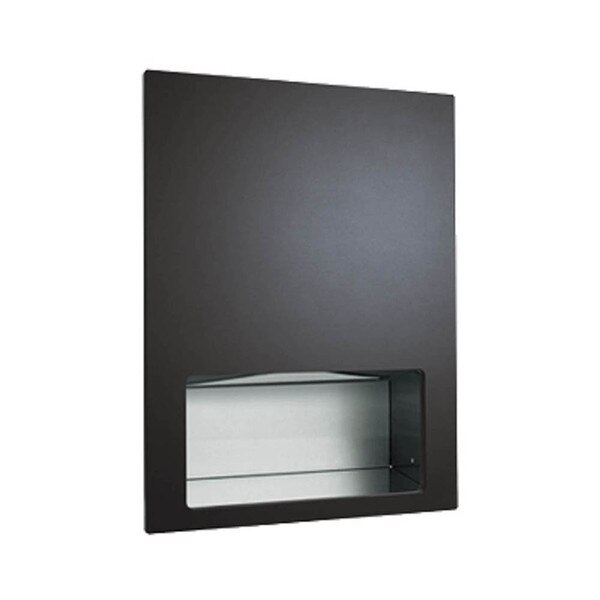

ASI Piatto™ (10-6457-41) Recessed Paper Towel Dispenser, Matte Black

(0) No Reviews yet
SKU: 10-6457-41


7 available for immediate shipment

Completely FLUSH mount. No projection!

This sophisticated paper towel dispenser cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

  • Well-suited for the smaller washroom with less space and traffic

  • Dispenses 350 C-fold or 475 multi-fold paper towels

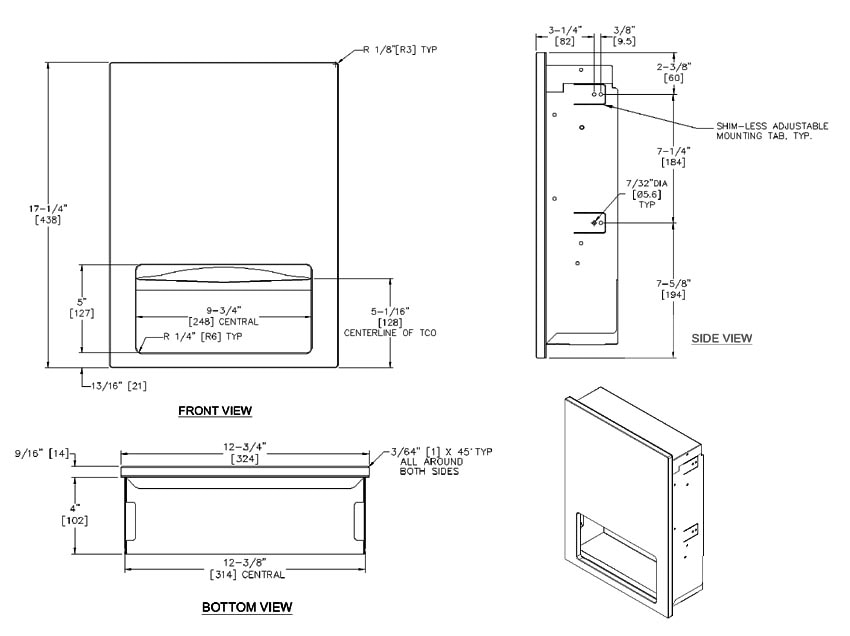

Measurement Diagram:


Need it in White? See ASI Piatto® 6457-00 .

Need an integrated waste bin? See the ASI Piatto® 6467-41 2-in-1 .

Type: C-Fold / Multi-Fold Paper Towel Dispenser
Primary Material: Phenolic Facia, Stainless Steel Frame
Color / Finish: Black
Installation Type: Wall / Recessed
Capacity: 350 C-Fold or 475 Multi-Fold Paper Towels
Power: No power required
ADA Compliant: Yes
Overall Dimensions: 12-3/4" Wide x 17-1/4" Tall x 4-9/16" Deep
Rough-In: 12-13/16" Wide x 17-5/16" Tall x 4-3/4" Deep
Shipping Dimensions: 20-1/4" Length x 15-1/2" Width x 7-1/2" Height
Shipping Weight: 17.2 lbs.
Manufacturer Model No.: 10-6457-41
UPC / GTIN: Not published
Country of Manufacture: Not published
Buy American Act compliant
Warranty: Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice.
Additional Comments: No cabinet lock.

Architectural Specifications:


Piatto™ Collection Paper Towel Dispenser shall hold and dispense 475 standard multi-fold or 350 standard C-fold paper towels. Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with two (2) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
