ASI Piatto 10-645210AC-41 Recessed Auto Towel Disp, Black, 120V

SKU: 10-645210AC-41
(No reviews yet) Write a Review
$1,110.20
Adding to cart… The item has been added
Availability:
Ships in 35 business days from manufacturer.
Important note icon

Completely FLUSH mount. No projection!"
IMPORTANT: As this product is made to order, the manufacturer does not allow returns or cancellations once production has started.

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal. Proximity sensing no-touch unit holds and dispenses one 8" diameter [Ø203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged.
  • Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied)
  • 110- 240VAC, 50/60 Hz, output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone

Certifications:

Buy American Act Compliant
This paper towel dispenser is ADA compliant when installed according to manufacturer's guidelines

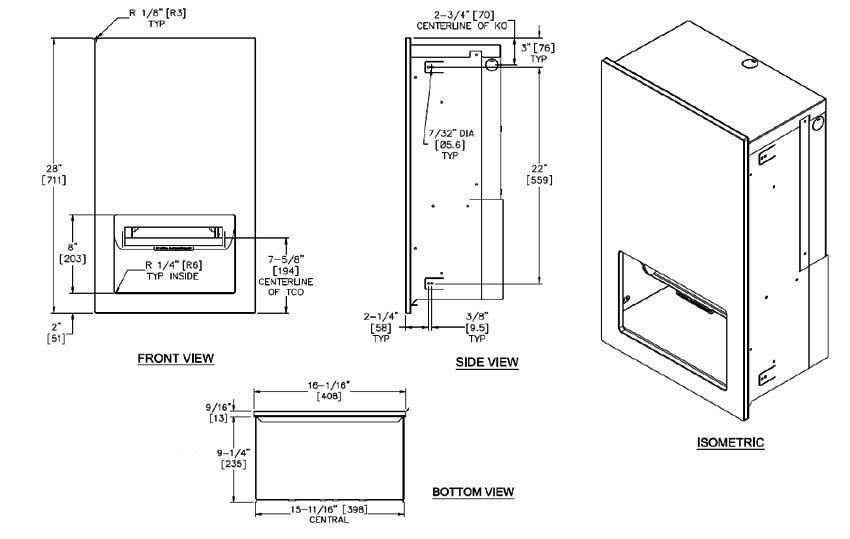

Measurement Diagram:

Measurements for ASI 10-645210AC-41 Recessed Paper Towel Dispenser and Trash Bin.
Architectural Specification:

Piatto™ Collection Automatic Paper Towel Dispenser shall hold and dispense one 8" wide [203] x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102] and shall automatically change over to main roll when finished with stub roll when feed tabs are properly engaged. Automatic Touchless Roll Towel Dispenser shall be powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 6VDC @ 2A and shall operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. At each activation unit shall feed out a length of towel selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black (Formica 909-58) or white (Formica 949) outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with two (2) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. Door, latch and hinges shall be attached with concealed Philips head screws. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
