Distinguishing Features: Top-Fill (Shared Reservoir) • Matte Black • Battery Operated • Liquid Soap

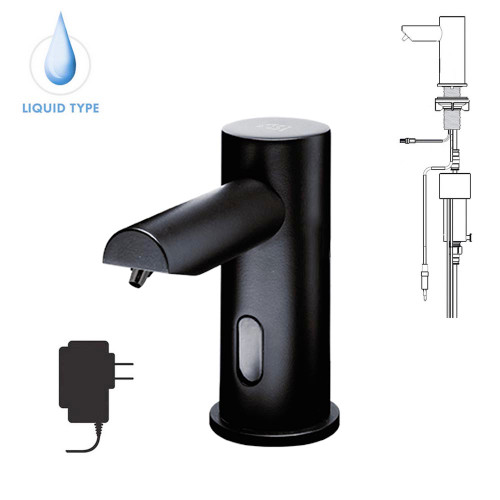

Countertop (deck mount) automatic (hands-free) liquid soap dispenser. Heavy duty brass body construction with matte black exterior.
This dispenser feeds from a central reservoir (10-0390, purchased separately) which allows refilling from above the counter and supplies up to 5 additional units. Shared reservoir capacity is 203 fl. oz. (6 liters). Battery operated (6 D-cells, not included). Above counter LED indicates function and battery condition.
Optional remote control (10-0390-R, purchased separately) can start an auto-priming function when soap is refilled, and can adjust the amount of soap dispensed.
Soap Requirements: Proper usage of this dispenser requires, that only soap in the following range for viscosity and pH may be used.
> Viscosity Range (mPa·s or cP): 100 – 3800> pH Range: 5 ~ 9
Additional information and specific soap brand recommendations can be found in this ASI EZ Fill Tested Soaps Document
- Easy Refill: Using a single soap reservoir (purchased separately), this top-fill system allows refill of up to 6 soap dispensers with 1 pour—for easy ongoing maintenance.
- Battery Operated - Uses 6 D Cell Batteries (not included)
- Universal Remote: (Purchased separately) controls all dispensers with one remote, allowing flexibility in settings with a choice of 4 presets.
- Uses bulk fill soap, saving money, and avoiding waste of single use cartridges and pouches.
