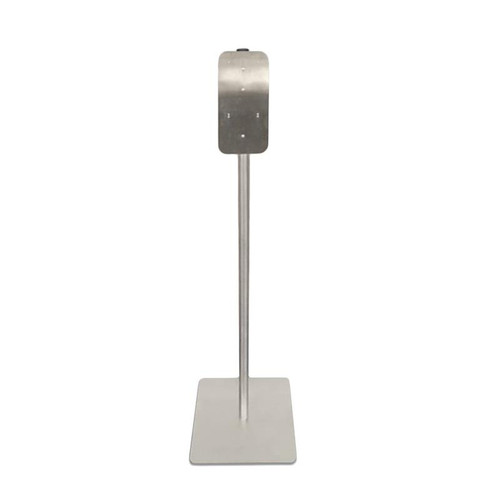

The ASI FS-0300 Hand Sanitizer Dispenser Stand is made of stainless steel type 304 alloy 18-8 and is free standing to enable placement by Facility Manager/Owner in any convenient location desired to serve occupant/visitor traffic. The base has a heavy duty rubber feet that prevents sliding. The universal mounting plate has patterns with mounting holes to accommodate dispenser units 20364 and 20365 and flat surface to allow tape mounting of units 0361 and 0362 (purchased separately) on same plate, one at a time, presented with operating features below 2010 ADA Accessibility Standards max reach range. The stands base is made of 11 gage [3], 1-1/2" Dia. x 18 gage tube [Ø38 x 1,2] and the mounting plate is made of 18 gage [1,2] with all edges rounded for user safety.
- Sleek and durable type 304 stainless steel hand sanitizer dispenser stand is free standing for convenient placement where needed while allowing for mobility
- Robust 11 gauge stand is designed with rounded edges for user safety, with an 18 gauge mounting plate and tube

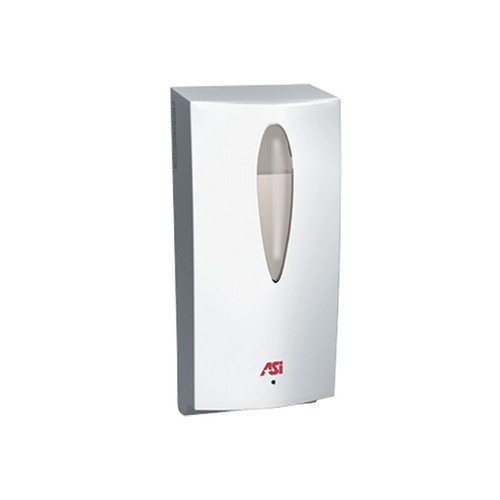

- Universal mounting plate has mounting holes to accommodate 20364 and 20365 dispensers and flat surface to allow tape mounting of units 0361 and 0362 (all purchased separately), on the same plate, one at a time

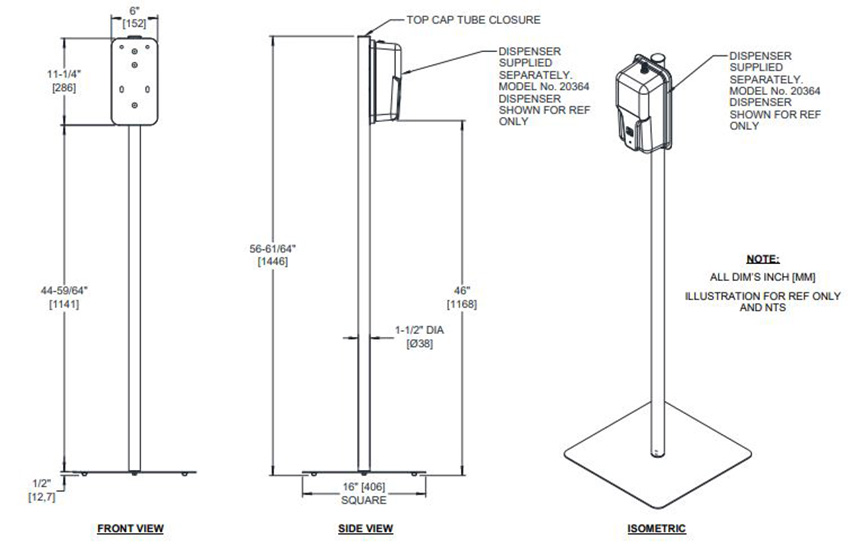

Measurement Diagram:
Architectural Specification:
Hand Sanitizer Dispenser Stand shall be stainless steel type 304 alloy 18-8 and shall be free standing to enable placement by Facility Manager/Owner in any convenient location desired to serve occupant/visitor traffic. Base has heavy duty rubber feet that prevent sliding. Universal mounting plate shall have patterns with mounting holes to accommodate dispenser units 20364 and 20365 and flat surface to allow tape mounting of units 0501-1, 0361 and 0362 (purchased separately) on same plate, one at a time, presented with operating features below 2010 ADA Accessibility Standards max reach range. Stand base shall be 11 gage [3], post shall be 1-1/2" Dia. x 18 gage tube [Ø38 x 1,2] and mounting plate shall be 18 gage [1,2] with all edges rounded for user safety. Unit is shipped KD for convenience and is easy to quickly assemble with all hardware supplied. Step by step instruction sheet is provided.
