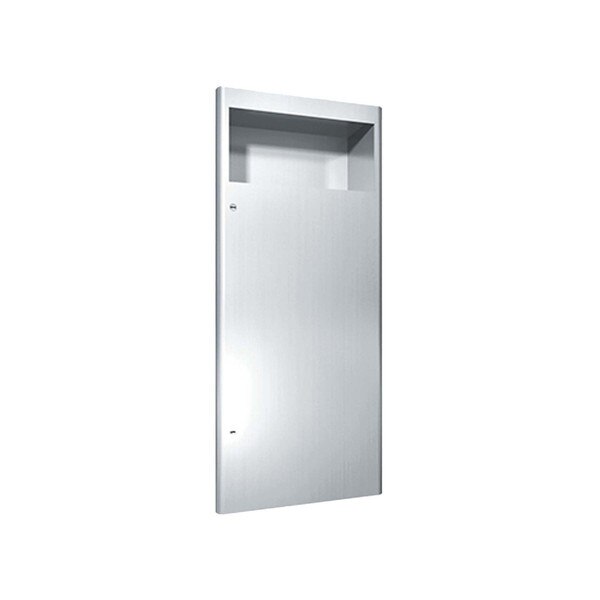

ASI 10-9474 Recessed Stainless Steel Waste Receptacle, 12 Gal., Locking
Details
Stainless steel waste receptacle holds 12 gal. (45.4 L) of washroom waste materials. Door is held closed with two (2) tumbler locks. Waste is inserted through opening at upper section of unit. Waste container fabricated of heavy duty stainless steel with a finger grip for easy removal. Locked door prevents unauthorized access or removal.
Specs
| Cover Material: | 20 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Recessed |
| Capacity: | 12 Gal. |
| Locks: | Yes, two. |
| Overall Dimensions: | 17-1/4" Wide x 40" Tall x 8-5/16" Deep (Projects 15/16" out from wall.) |
| Rough-In: | 15-3/4" Wide x 38-1/2" Tall x 6-1/4" Deep |
| Net Weight: | 36.6 lbs. |
| Shipping Dimensions: | 42" Length x 19" Width x 10" Height |
| Shipping Weight: | 39.6 lbs. |
| Comments: | Removeable inner stainless steel trash container. Swing door closes when not in use, keeping odors contained. |
Architectural Specifications:
Recessed Waste Receptacle unit shall have a waste capacity of 12 gal (46 liters) and shall be fabricated of type 304 stainless steel alloy 18-8. Cabinet shall be 20 gauge and shall have a 1" (25) wide perimeter trim to lay flat against wall. Full face door shall be 16 gauge with square return to wall at top and bottom and radius returns to wall on vertical edges and shall have welded closed and ground corners. Door shall be attached to the edge of unit with a full length 3/16" dia. (Ø5) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI Washroom Equipment. Waste container shall be fabricated of heavy duty stainless steel with a finger grip for easy removal. All exposed surfaces shall have a satin finish.
