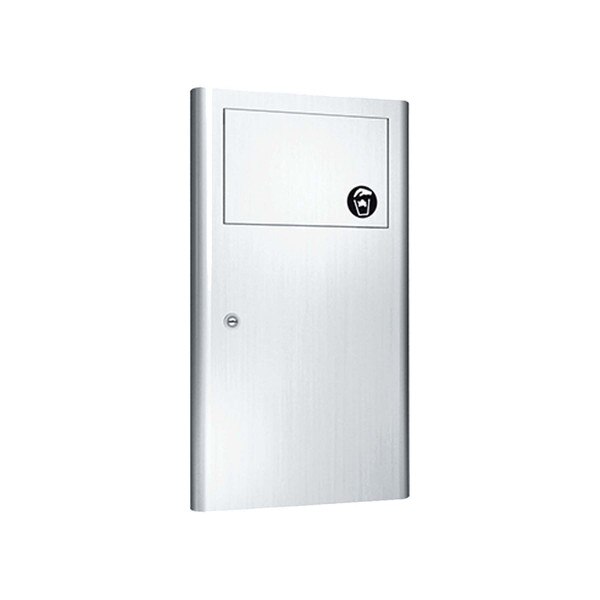

ASI 10-9471 Recessed Sanitary Napkin Disposal,w/Swing Door, Stainless Steel, 1.8 Gal
Details
Features a self-closing stainless steel push door that covers the disposal opening along with a removable 1.8 gal. (7 L) stainless steel waste receptacle.
Users push door to deposit waste material. Unit is emptied by removing bottom waste container and inverting over collection bag. Safety finger grip on waste receptacle provides convenient grip for service. Locked door prevents unauthorized access or removal.
Specs
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel |
| Capacity: | 1.8 Gal. |
| Lid or Cover: | Yes, swing-in door |
| Locks: | Yes |
| Overall Dimensions: | 10-5/8" Wide x 19-5/8" Tall x 4-15/16" Deep |
| Rough-In: | 9-1/8" Wide x 18-1/8" Tall x 4-1/4" Deep |
| Net Weight: | 12.3 lbs. |
| Shipping Dimensions: | 22" Length x 13" Width x 6" Height |
| Shipping Weight: | 12.6 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Includes internation graphic waste symbol. Mounting fasteners not included. |
Architectural Specifications:
Recessed Sanitary Napkin Disposal unit shall have a waste capacity of 1.8 gal (7 liters) of dry/solids waste. Cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge with a 1′′ (25mm) wide perimeter return to lay flat against wall. Full face door shall be 16 gauge with a 15/16′′ (24mm) square return to wall at top and bottom and 3/4′′ (19mm) radius returns to wall on vertical edges with no visible seams. Door shall be attached to the cabinet body with a 3/16′′ (5mm) dia. stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Push door shall be hung on a spring loaded solid stainless steel pivot rod and shall have the international graphic symbol for waste on face. Waste can shall be fabricated of stainless steel and shall be provided with a pull for easy servicing and removal. All exposed surfaces of unit shall have a No 4 satin finish.
