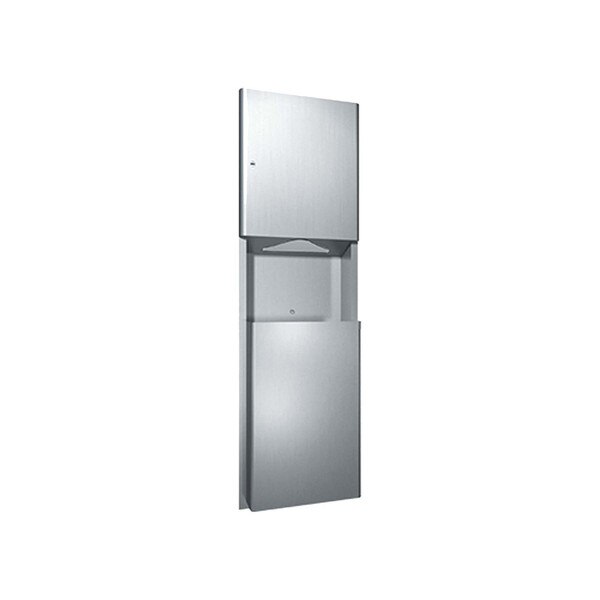

ASI (10-9469) Recessed Multi/C-Fold Paper Towel Dispenser & Waste Receptacle, 13 Gal (600C/800M)

(0) No Reviews yet
SKU: 10-9469


1 available for immediate shipment

Dispenses 600 C-fold or 800 multi-fold paper towels. 13 gal. (49 L) waste receptacle. Paper towels are manually withdrawn through dispensing slot until towels are depleted. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit.

Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs. A commercially available disposable trash bag is provided by owner, draped over edges of can and locked into cabinet with receptacle. Locking compartment and receptacle retainer prevents unauthorized access or removal.

Cover Material: Type 304 Stainless Steel Alloy 18-8
Mount: Wall / Recessed
Capacity: 600 C-Fold | 800 Multifold
Waste Bin Capacity: 13 Gal.
Locks: Yes, one for towel compartment, one for waste bin. Keyed alike.
Overall Dimensions: 17-1/4" Wide x 56" Tall x 8-1/4" Deep (Projects 4-1/4" out from wall.)
Rough-In: 15-3/4" Wide x 54-1/2" Tall x 4" Deep
Net Weight: 52 lbs.
Shipping Dimensions: 58" Length x 19" Width x 10" Height
Shipping Weight: 56 lbs.
Comments: For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided.

Architectural Specifications:


Profile Collection Recessed Paper Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard Cfold paper towels and shall have a waste capacity of 1.74 ft³ or 13 gallons (49 liters). Cabinet, waste receptacle and door shall be fabricated of type 304 stainless steel alloy 18-8. All exposed surfaces shall have a № 4 satin finish. Full-face door shall be 16 gauge and shall be free of miters, welding or open seams with 3/4" (19) radiused vertical edges and 15/16" (24) square horizontal returns to wall. Door shall be attached to the edge of unit frame with a concealed full length 3/16" diameter (Ø4.8) heavy duty stainless steel multi-staked piano hinge and shall be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment. Towel dispensing slot shall have a fully hemmed -in rolled edge for snag-free dispensing and user safety. Removable waste receptacle shall be 16 gauge with hemmed edges and shall have 3/4" (19) radiused vertical edges to match door above and shall be retained by tumbler lock keyed alike to other ASI washroom accessories. Cabinet shall be 22 gauge with one-piece face trim construction 1" (25.4) wide with no miters or exposed welding and 1/4" (6.4) square returns to wall. Structural assembly of body and door components shall be of welded construction.
