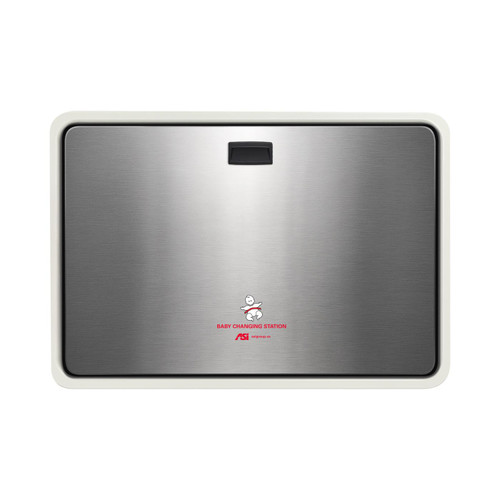

The new ASI 10-9026-41 wall-mounted baby changing table is designed for public and commercial restrooms, featuring a FDA-approved bacteria-resistant high-density polyethylene bed with a modern 20 gauge Type 304 (black) stainless steel veneer for style, lasting durability, and safety.
Adjustable two-part vinyl-coated safety strap with Sure-Lock latch holds infants securely in place during changing. The recessed handle pull makes opening and closing an easy one hand operation. For hygiene and convenience the integrated liner and towel dispenser with protective lid keeps supplies clean and easy to replace.
Designed for infants up to 3.5 years old and 50 lbs. (23 kg), rigorously tested to withstand up to 250 lbs. (113 kg) of static load with minimal deflection.
Tested to meet 2ADA Accessibility Standards and leading international safety certifications, including ASTM F-2285, ASTM F-2388, G-21, G-22, ANSI Z535, ANSI 117.1, and EN 12221-1/2 (A1:2013). For compliance with 2010 ADA Accessibility Standards install unit so that top edge of changing table is 30-1/4" Above Finished Floor.
Adjustable two-part vinyl-coated safety strap with Sure-Lock latch holds infants securely in place during changing. The recessed handle pull makes opening and closing an easy one hand operation. For hygiene and convenience the integrated liner and towel dispenser with protective lid keeps supplies clean and easy to replace.
Designed for infants up to 3.5 years old and 50 lbs. (23 kg), rigorously tested to withstand up to 250 lbs. (113 kg) of static load with minimal deflection.
Tested to meet 2ADA Accessibility Standards and leading international safety certifications, including ASTM F-2285, ASTM F-2388, G-21, G-22, ANSI Z535, ANSI 117.1, and EN 12221-1/2 (A1:2013). For compliance with 2010 ADA Accessibility Standards install unit so that top edge of changing table is 30-1/4" Above Finished Floor.
- Dimensions Open: 35-5/32"x 24-1/4" x 22-1/32" (893 x 616 x 560 mm)
- Dimensions Closed: Closed: 35-5/32" x 24-1/4" x 3-7/8" (893 x 616 x 98 mm)
- Easy open and close one-handed operation
- Includes one integral bag hook and bed-liner dispenser
- Live Load 50 lbs (23 kg). Tested static load capacity 250 lbs (113 kg) with minimal deflection
- Five (5) years warranty against defects in material or workmanship.

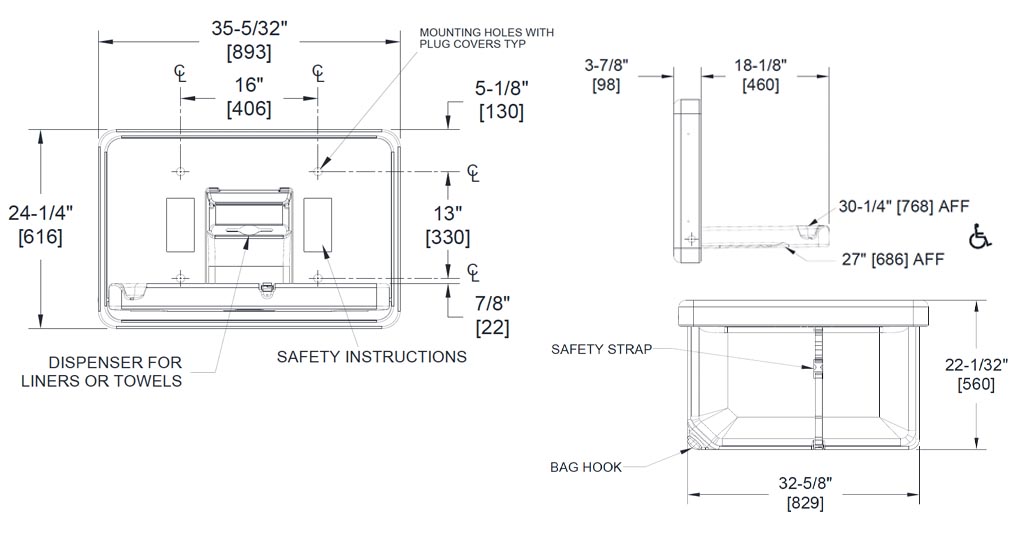

Measurement Diagram:
Architectural Specification:
Fabricated of FDA-approved fungus and bacteria-resistant plastic. Its vinyl-coated, adjustable safety strap assures child protection. Unit platform is shaped to keep a child restrained from rolling out of the bed. Unit is easily opened and closed by user with one hand in any location and handle cavity is provided on door face for preferred use. Unit complies with 2010 ADA Accessibility Standards, ASTM F-2285 & F-2388, G-21, G-22, ANSI Z535, ANSI 117.1, EN 12221-1, and EN 12221- 2 (Including A1:2013). Tested during development to sustain 250 lbs (113 kg) static load with minimal deflection. Bed liner/towel dispenser presents liners or towels for user hygiene and convenience. Dispenser lid is provided for sanitary protection and ease of loading of wipes or liners. Safety strap is easily adjustable by user for baby size and Sure-Lock latch securely resists opening until released by opposing finger pressure by adul
