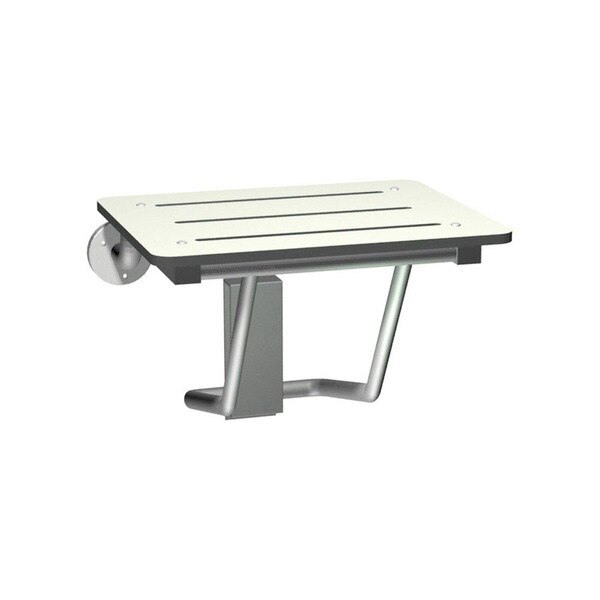

ASI (10-8203) Compact, Fold-Up Shower Seat, White Phenolic, Stainless Steel Frame
5/16″ (8 mm) thick, one-piece, solid, white colored, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel.
Features a selflocking mechanism. Seat measures 18″ (457 mm) wide and projects 16″ (406 mm) from wall.
|Seat Material:||5/16" thick phenolic with white color top and bottom surfaces and black edges|
|Frame:||14 gauge (.075" <1.9> thick) 1" diameter (Ø25) and 16 gauge (.06" <1.5> thick) & 20 gauge (.04" <1.0> thick) 1-1/8" diameter (Ø29), all type 304 stainless steel.|
|Capacity:||250 lbs. (designed to meet and exceed ADAAG requirements as published in CABO/ANSI A117.1 -2003 section 610 and CFR 28 Part 36, Federal Register Vol. 56, No 144 July 26, 1991, section 4.21.3 and section 4.26.3)|
|Operation:||Flip down (one handed) with guide bracket and spring|
|Overall Dimensions:||OPEN: 18" Wide x 14-5/8" Deep (Seat top, when mounted, 17 to 19" from floor)|
CLOSED: 18" Wide x 5-9/16" Deep
Seat size: 18" Wide x 14-5/8" Deep x 5/16" Thick
|Net Weight:||11 lbs.|
|Shipping Dimensions:||23" Length x 20" Width x 6" Height|
|Shipping Weight:||12.4 lbs.|
|Comments:||Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.|
|Country of Manufacture:||Taiwan|
Compact Rectangular Phenolic Fold-up Shower Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel. Seat frame and support legs shall be 1" diameter [Ø25] and 1-1/4"  square x 18 gauge [1,2] with 3/16" [4,8] mounting flanges and 16 gauge [1,5] guide bracket/arm support. All exposed surfaces shall have satin finish. Seat shall be 5/16"  thick phenolic with white color top and bottom surfaces and shall have black edges. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
