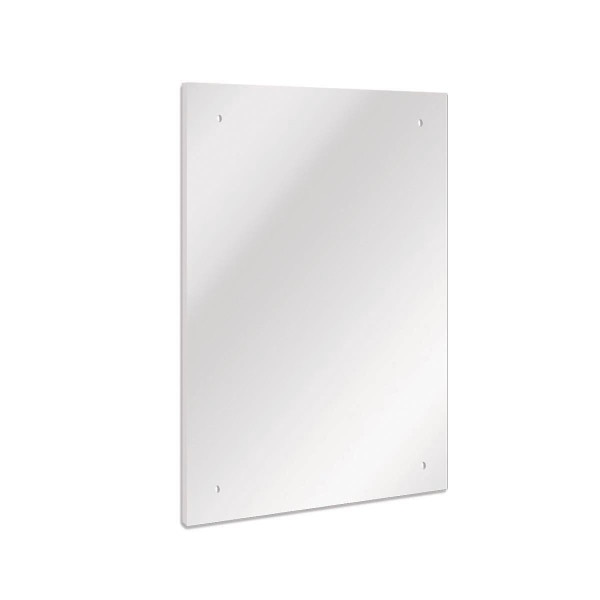

ASI (10-8026-1830) Frameless Stainless Steel Mirror 18" Wide X 30" Tall w/Masonite Backing
ASI 10-8026-1830 Frameless Stainless Steel Mirror with Masonite Back shall be fabricated of 18-8 stainless steel, type 304, No 20 gauge with No8 mirror finish. Backing shall be 1/4" (6mm) thick tempered water resistant masonite. Unit shall have 5/16" (8mm) returns to wall all around. Unit shall be provided with four (4) 7/32" (5.5mm) dia. mounting holes.
| Overall Dimensions:: | 24" Wide x 30" Tall x 5/16" Depth |
| Shipping Weight: | 10.5 lbs |
| Manufacturer Model No.: | 10-8026-1830 |
Architectural Specifications:
Frameless Stainless Steel Mirror with Masonite Back shall be № 8 mirror finish 20 gage type 304 stainless steel alloy 18-8. Backing shall be 1/4" [6] thick tempered waterproof Masonite. Unit shall have 5/16" [8] returns to wall all around. Unit shall have four (4) 7/32" Dia [Ø5,5] mounting holes for sizes up through 24 x 30; sizes 24 x 36 and up shall have six (6) mounting holes.
