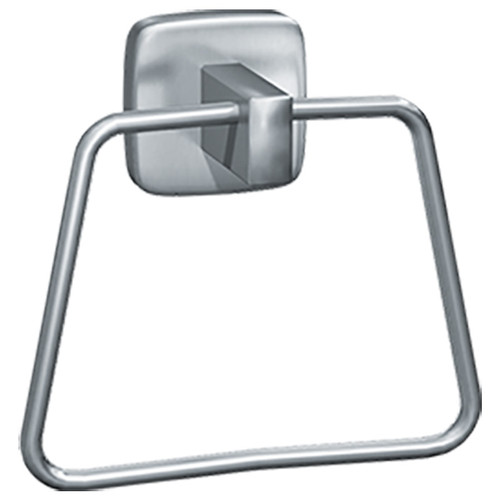

ASI 10-7385-S Surface mount towel ring for bath and hand towels. Ring is 4 1/2" (115 mm) wide, made of 1/4" (6 mm) diameter stainless steel bar with satin finish. Projects 2 1/2" (65 mm) from wall. 5" (125 mm) high.
- Towel Ring is fabricated of stainless steel alloy 18-8, type 304
- Support post shall be 1/2" x 1" (13mm x 25mm) rectangular tubing with formed mounting flange and bracket welded on end.
- Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate.
Architectural Specification:
Towel Ring shall be fabricated of stainless steel alloy 18-8, type 304. Support post shall be 1/2" x 1" (13mm x 25mm) rectangular tubing with formed mounting flange and bracket welded on end. Ring shall be formed from 1/4" diameter (Ø6.4mm) stainless steel rod. Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright or satin as chosen by option and indicated by code suffix.
