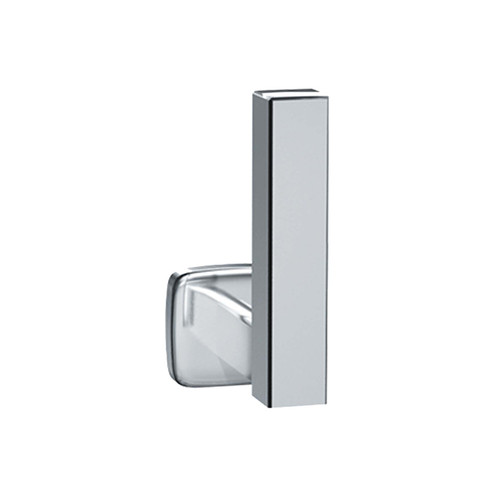

Extra roll of paper is placed over the horn type holder. Stainless steel set screw on bottom of flange locks unit to mounting plate.
Architectural Specification:
Spare Roll Holder shall be manufactured of stainless steel, alloy 18-8 type 304. Horizontal arm shall be 1/2" x 1" (13mm x 25mm) 21 gauge rectangular tubing with 18 gauge formed mounting flange and bracket welded on end. Roll holder post shall be 1" x 1" (25mm x 25mm) 20 gauge square tubing with closed ends and shall be welded to outer end. Mounting plate shall be provided and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom of flange to lock unit to mounting plate. Surface finish shall be bright or satin as chosen by option and indicated by code suffix.
