Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

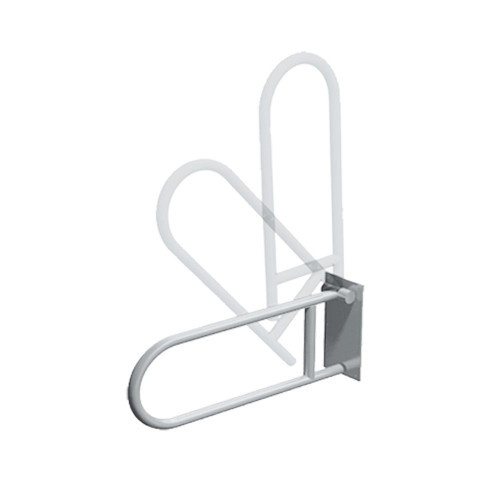

This swing-up grab bar is lowered manually to horizontal position for support and raised for departure. Tension control prevents grab bar from dropping from the vertical position. Balance tension is adjustable by owner by tightening or loosening the clamp bolt. Bumper provides positive bar stop at top rest position.
- Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
- Mandrell bending process ensures uniform bar diameters.
- Heliarc welding forms a single structural unit.
- ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
- 1 Year manufacturer's warranty against defects in materials and workmanship.

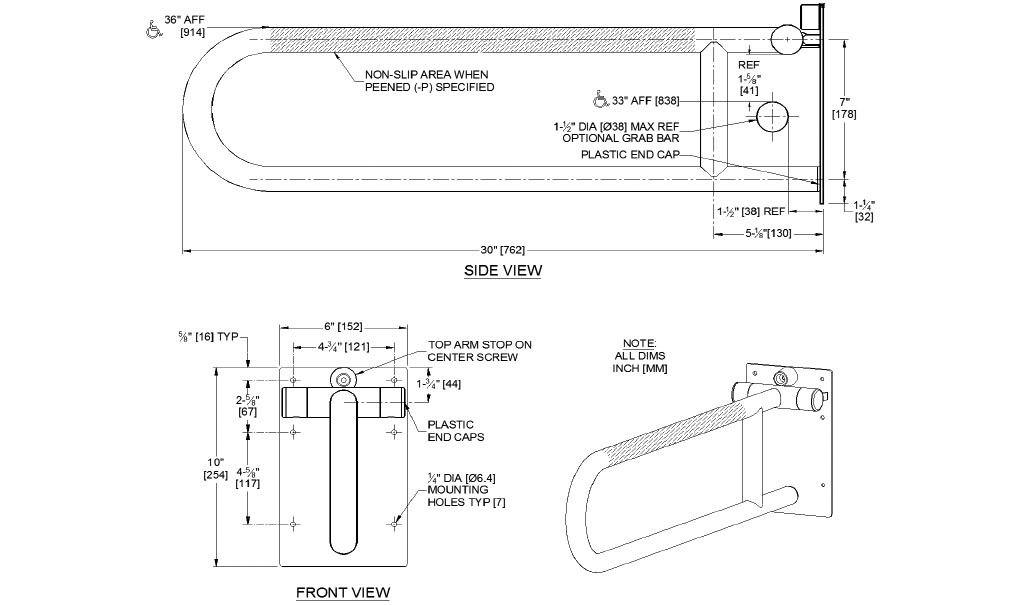

Measurement Diagram:
