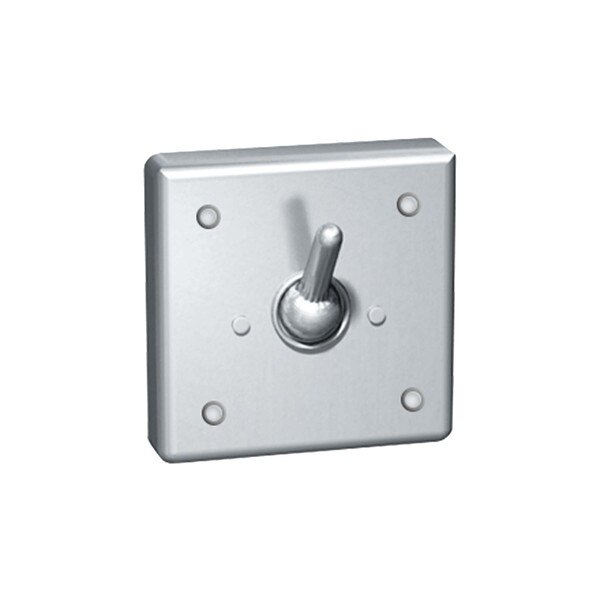

ASI 10-123 Safety Release Clothes Hook, Square Base, Stainless Steel, Exposed Mount, Satin Finish
Fabricated of 12 gauge type 304 stainless steel with a satin finish. Back plate is fabricated of 14 gauge stainless steel. If hook is excessively loaded, it will snap down for safety.
Square shape. Unit has four holes for front mounting.
| Primary Material: | Stainless Steel |
| Finish: | Satin |
| Mount: | Wall / Surface, Exposed |
| Capacity: | 35 lbs., Snap release (anti-ligature) |
| Overall Dimensions: | 4-1/4" Wide x 4-1/4" Tall x 2-1/4" Deep |
| Net Weight: | 1 lb. |
| Shipping Dimensions: | 6" Length x 6" Width x 6" Height |
| Shipping Weight: | 1.3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Includes mounting hardware, but not anchors. |
Architectural Specifications:
Front Mounted Security Clothes Hook Shall be fabricated of type 304 stainless steel alloy 18-8. Hook shall be solid bar 3/8" diameter (Ø10) of one-piece construction with 1" diameter (Ø25) swivel trip-ball and wall plate shall be 14 gauge. Wall plate shall have four (4) dimpled mounting holes for 1/4-20 flat head pin-Torx® machine screws (supplied). Safety hook shall snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing shall prevent hook from being set in vertical-up position. All exposed surfaces shall have No 4 satin finish.
