Please note: The manufacturer does not include screws with this item. Since different wall types (for example, drywall, tile, concrete, wood) require different fasteners, screws must be selected and provided by the installer.
Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1″ dia. tubing. Length as specified.
Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (not included).
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72″ (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72″ (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2″ (1892mm) AFF or 67″ (1702mm) above tub rim to obtain 6″ (152mm) bottom overlap.
Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (not included).
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72″ (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72″ (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2″ (1892mm) AFF or 67″ (1702mm) above tub rim to obtain 6″ (152mm) bottom overlap.

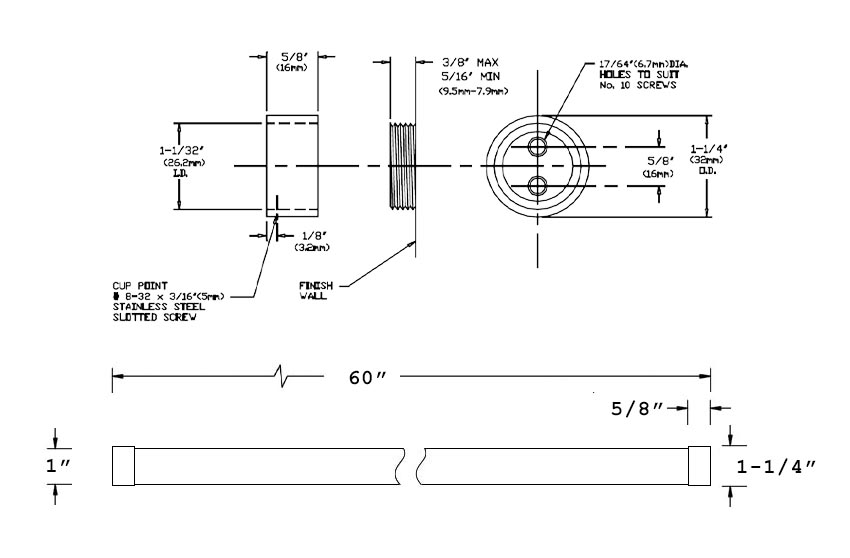

Measurement Diagram:
