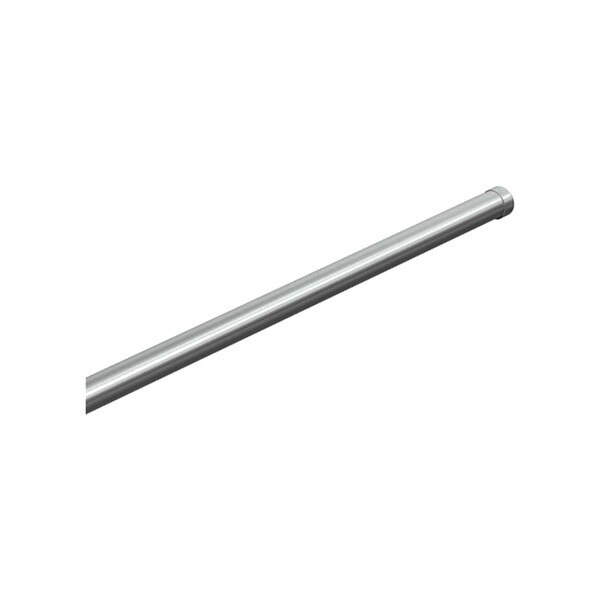

ASI 10-1224-42 Shower Curtain Rod w/Concealed Mount Flanges, 1" O.D. Rod, 42" L
Details
 | Please note: The manufacturer does not include screws with this item. Since different wall types (for example, drywall, tile, concrete, wood) require different fasteners, screws must be selected and provided by the installer. |
Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1″ dia. tubing. Length as specified.
Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (not included).
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72″ (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72″ (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2″ (1892mm) AFF or 67″ (1702mm) above tub rim to obtain 6″ (152mm) bottom overlap.
Specs
| Primary Material: | Stainless Steel |
| Mount: | Wall / Surface, Concealed |
| Rated Length: | 42" |
| Overall Dimensions: | 42" Long x 1-1/4" O.D (Flange) (Rod Dia. 1") |
| Net Weight: | 1.7 lbs. |
| Shipping Dimensions: | 44" Length x 4" Width x 4" Height |
| Shipping Weight: | 1.7 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Shower Curtain Rod with Concealed Mounting Flanges shall have rod fabricated of alloy 18-8 stainless steel, type 304, No20 gauge 1" dia. tubing. Exposed finish shall be satin and shall be protected during shipment with a plastic bag. Length shall be as specified. Concealed Mounting Flanges shall be chrome plated brass with a satin finish. Pair of flanges shall each consist of a wall mounting lug and a locking sleeve. One sleeve shall have locking screw to prevent rod rotation. Mounting lugs shall be provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others).
