Please note: The manufacturer does not include screws with this item. Since different wall types (for example, drywall, tile, concrete, wood) require different fasteners, screws must be selected and provided by the installer.

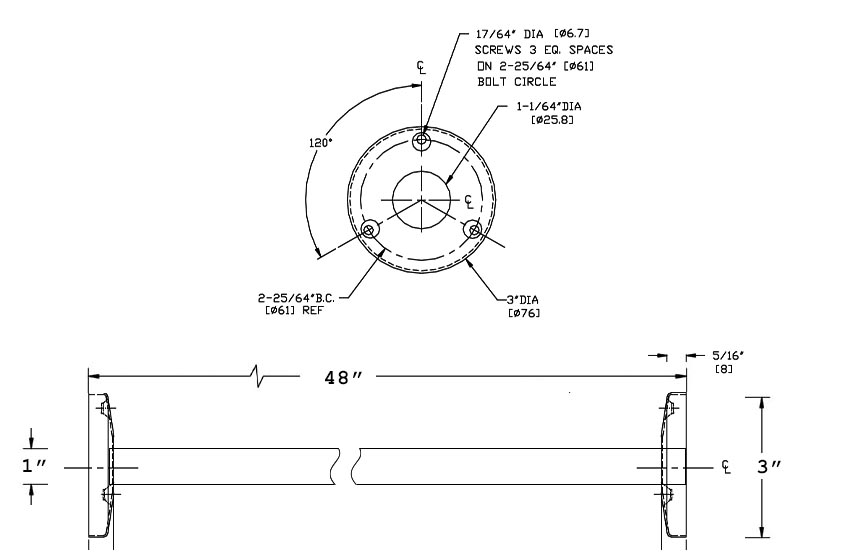

Flanges are fabricated of type 304 stainless steel alloy 18-8. Flanges have three (3) dimpled 17/64″ diameter (Ø6.7) holes to accept either Ø1/4 (M6) or № 10 (M5) oval head screws (not included).
Tubing is 1″ diameter (Ø25) x 20 gauge with a satin finish. Length will be as specified.
Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others (by others). Rod will bend and pull from flanges if significant body weight is suspended.
Tubing is 1″ diameter (Ø25) x 20 gauge with a satin finish. Length will be as specified.
Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others (by others). Rod will bend and pull from flanges if significant body weight is suspended.
