Please note: The manufacturer does not include screws with this item. Since different wall types (for example, drywall, tile, concrete, wood) require different fasteners, screws must be selected and provided by the installer.

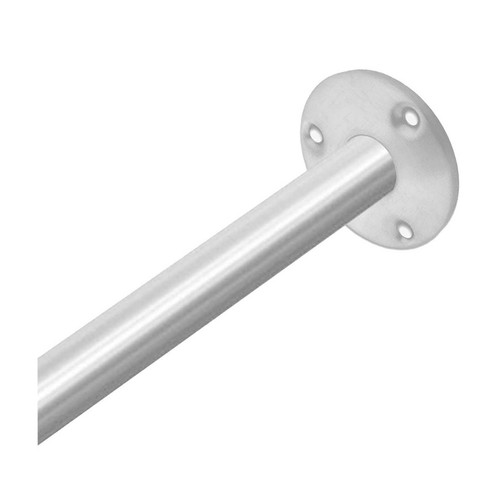

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64″ (5.2mm) dia. holes to accept #10 flat or oval head screws not included.
Tubing is 18 gauge, 1-1/4′′O.D. with a satin finish. Choose specified length.
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ (1829mm) require ceiling hanger Model No 1204-C.
For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ (1829mm) length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ (1892mm) AFF or 67′′ (1702mm) above tub rim to obtain 6′′ (152mm) bottom overlap.
Tubing is 18 gauge, 1-1/4′′O.D. with a satin finish. Choose specified length.
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ (1829mm) require ceiling hanger Model No 1204-C.
For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ (1829mm) length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ (1892mm) AFF or 67′′ (1702mm) above tub rim to obtain 6′′ (152mm) bottom overlap.

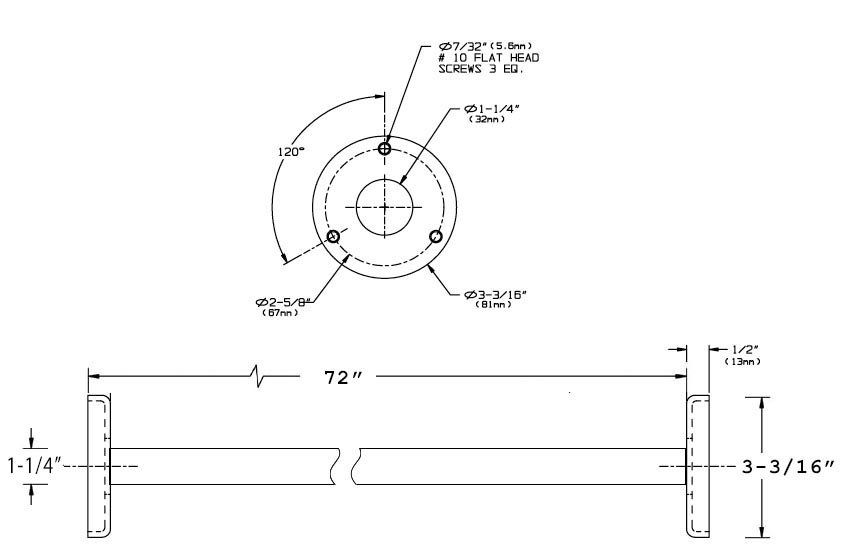

Measurement Diagram:
