Flame-resistant, anti-bacterial, 8 gauge white vinyl fabric with standard height of 72″ (1829 mm). Curtain should be 6″ (152 mm) wider than opening up to 42″ (1067 mm) and 12″ (305 mm) wider than opening exceeding 42″ (1067 mm).
Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Curtain hooks Model № 1200-SHU are recommended.
1200-V42 – 42″ (1067 mm) wide, 7 hooks recommended
Shower curtain should be attached with hooks (not provided, order separately) to rod (not provided, order separately). Curtain hooks Model № 1200-SHU are recommended.
1200-V42 – 42″ (1067 mm) wide, 7 hooks recommended

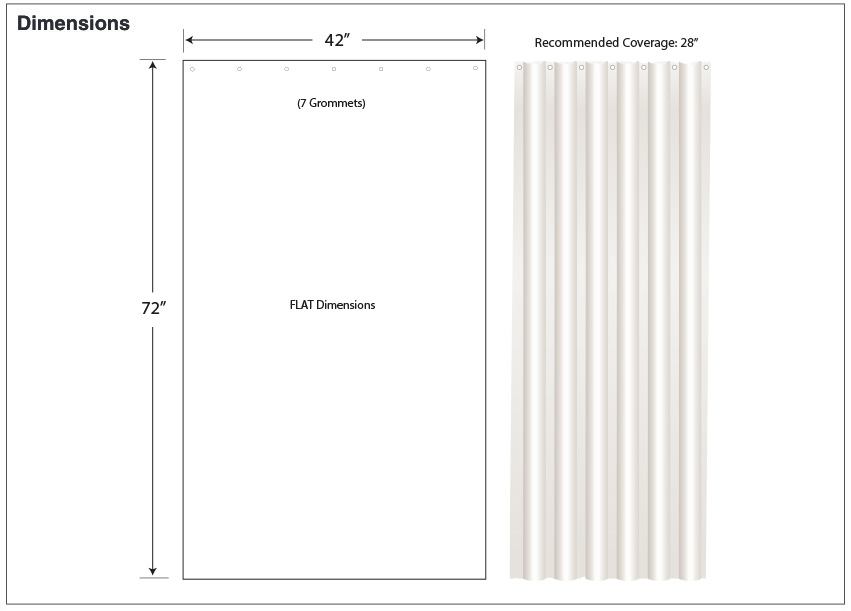

Measurement Diagram:
Architectural Specification:
Shower Curtain shall be fabricated of .0095" [0,24] thick PVC sheet treated with a broad spectrum antimicrobial agent to inhibit the growth of fungal, bacterial and algal organisms. Protection agents shall remain in effect after repeated lowtemperature mild soap washing and air-drying cycles. Top hem shall be 1-1/2" [38] wide, backing reinforced and heatsealed above and below grommet row. Bottom hem and vertical edges shall be plain edge. Clear anodized aluminum grommets with 3/8" inside diameter [Ø9,5] shall be machined into top hem at 6-1/2" ± 1/2" [165 ± 13] intervals on centers starting at 1-1/4" ± 1/4" [32 ± 6] from edges. Color shall be white. Pattern is San Suede Pebble Emboss № SS9700. Effective inhibition has been demonstrated via testing in accordance with ASTM G2190, ASTM E1428 and AATCC Test Method 147- 1998.
