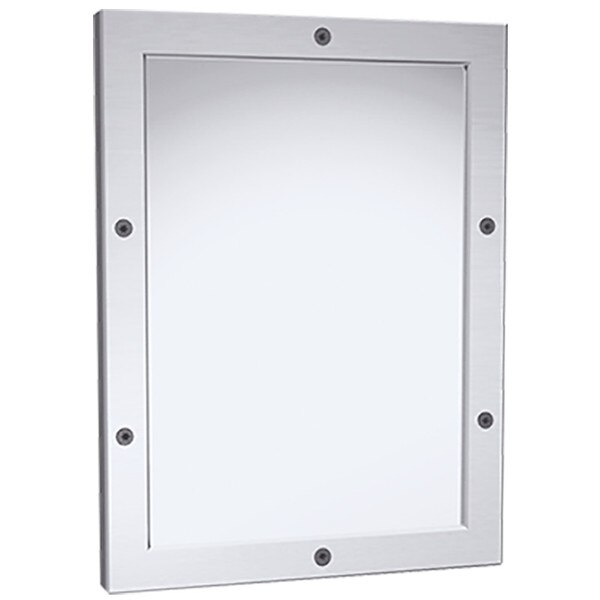

ASI 10-105-14 Framed Mirror, 12" Wide x 16" Tall, Front Mount, Polished Stainless Steel
Details
ASI 10-105-14 Frame 14 gauge type 304 stainless steel with satin finish, corners welded and ground smooth. Front mounting furnished with Torx® vandal-resistant 1/4-20" x 2 (150 mm) machine screws.

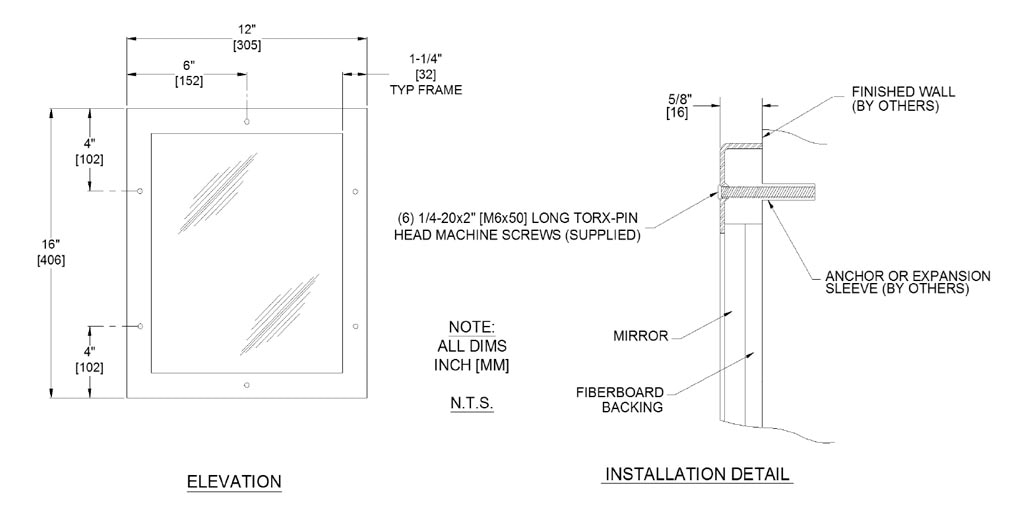

Measurement Diagram:
Specs
| Brand: | ASI |
| Manufacturer Model No.: | 10-105-14 |
| Mount: | Flat |
| Frame Material: | Polished Stainless Steel |
| Frame Type: | Security Frame |
| Glazing: | Polished Stainless Steel |
| Overall Dimensions: | Not Published |
| Shipping Dimensions: | Not Published |
| Shipping Weight: | 5.9 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Not Published |
| Warranty: | 15 Yr. Against Silver Spoilage |
Architectural Specifications:
Surface Mounted Security Framed Mirror shall have frame fabricated of 14 gauge alloy 18-8 stainless steel, type 304. Structural assembly of frame components shall be of welded construction with six (6) mounting holes. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Mirror glazing will be as specified in the Glazing Options chart below. Unit will be provided with fiberboard backing.
