This product ships via freight service (on a pallet). To offer the best price, there is a minimum order quantity of 2. If you need only 1, please call us for a quote.
0620-2436 – 36” wide x 48” high (914 x 1219 mm)

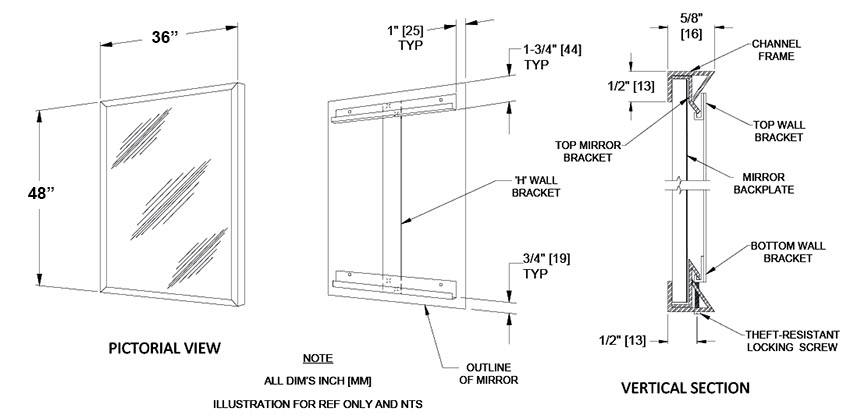

Measurement Diagram:
Architectural Specification:
Channel Frame Mirror shall have frame of 20 gauge type 304 stainless steel alloy 18-8, with mitered corners. Mirror glazing shall be _____ (insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be 20 gauge corrosion protected steel and shall be spot welded into “H” hanger. Mirror shall be secured to lower bracket with a Phillips Pan Head locking screw.
