ASI 10-0620-3036 Plate Glass Mirror with Stainless Steel, Chan-Lok Frame, 30" W x 36" T

SKU: 10-0620-3036
(No reviews yet) Write a Review
$446.95
Adding to cart… The item has been added
Availability:
Ships in 3 business days from manufacturer.
½” x ½” (13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one-piece roll formed member that encases mirror and backing revealing a tight mitered corner. Mirror is installed on two wall brackets and held secure by theft-resistant screws.

0620-3036 – 30” wide x 36” high (610 x 914 mm)

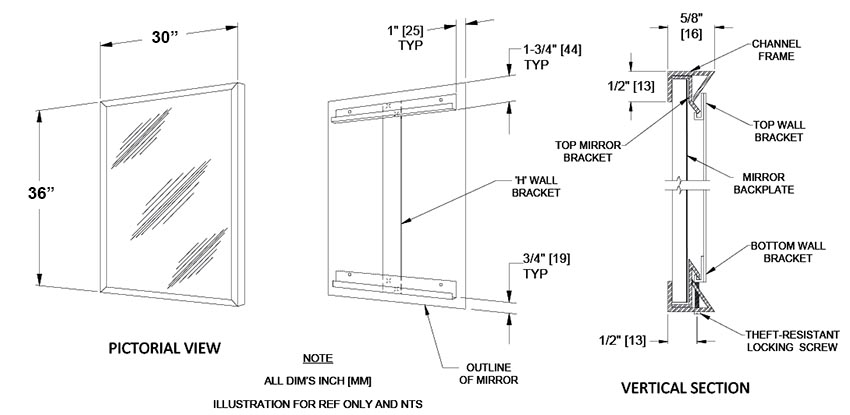

Measurement Diagram:

Measurements for ASI 10-0620-3036 Mirror
Architectural Specification:

Channel Frame Mirror shall have frame of 20 gauge type 304 stainless steel alloy 18-8, with mitered corners. Mirror glazing shall be _____ (insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be 20 gauge corrosion protected steel and shall be spot welded into “H” hanger. Mirror shall be secured to lower bracket with a Phillips Pan Head locking screw.
