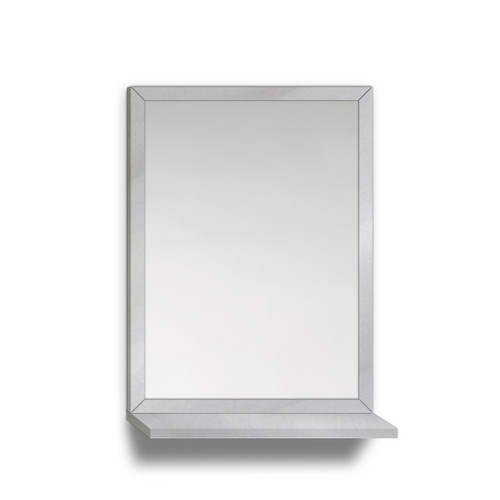

18 gauge stainless steel shelf with satin finish and all edges returned and hemmed for maximum rigidity and safety. Shelf is welded to face of frame and projects 5″ (127 mm).
0605-1824 – 18” wide x 24” high (457 x 610 mm)
0605-1824 – 18” wide x 24” high (457 x 610 mm)
- 18 gauge alloy 18-8 stainless steel, type 304 with mitred corners
- Standard glazing is №1 quality, 1/4" [6.4] thick plate/float, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating.
- Structural reinforcement gussets of welded construction.
- Back of mirror is protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel.
Measurement Diagram:
Architectural Specification:
Inter-Lok Stainless Steel Framed Mirror with Shelf shall fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with mitered corners welded and polished. Structural reinforcement gussets shall be of welded construction. Mirror glazing shall be _____(insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected with friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. An 18 gauge corrosion protected steel “H” bracket shall be supplied. Mirror shall be secured to vertical brackets with corrosion protected headless hex socket locking screws furnished. All exposed surfaces shall be satin finish.
