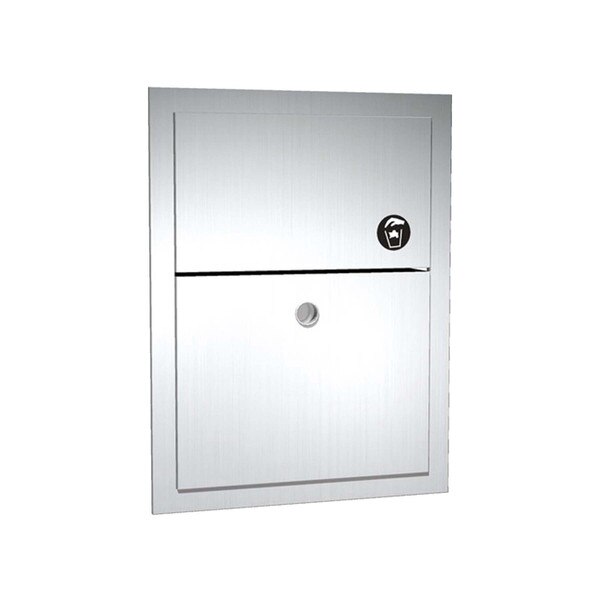

ASI 10-0473 Recessed Sanitary Napkin Disposal, 1.5 Gallon
Self-closing door is mounted to cabinet with stainless steel spring hinge. Recessed for side wall installation. Holds 1.5 gal (5.7 liters) of dry solids.
Users push door to deposit waste material. Door is self-closing. Unit is emptied by removing can and removing disposable waxed waste paper bag which is furnished by others. Waste container is held in place by a “Z” clip retainer to prevent inadvertent dumping of contents. Safety-edged finger grip provides convenient grip for service.
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel |
| Capacity: | 1.5 Gal. |
| Lid or Cover: | Yes, swing-in door |
| Locks: | No |
| Overall Dimensions: | 13" Wide x 17-1/4" Tall x 4-1/4" Deep (Projects 1/4" out from wall) |
| Rough-In: | 11-1/4" Wide x 15-3/4" Tall x 4" Deep |
| Net Weight: | 7.4 lbs. |
| Shipping Dimensions: | 19" Length x 15" Width x 6" Height |
| Shipping Weight: | 7.7 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is emptied by removing bottom waste container and inverting over collection bag. Waste container is captured by internal angle to prevent inadvertent dumping. Mounting fasteners not included. |
Architectural Specifications:
Recessed Sanitary Napkin Disposal shall hold 1.5gal (5.7 liters) of dry solids. Upper door, waste container and cabinet frame shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. Structural assembly of body and door components shall be of welded construction. Upper door shall be hung on cabinet with a stainless steel spring hinge and have the international waste symbol on face. All exposed surfaces shall have a No 4 satin finish and be protected during shipment with a PVC film that shall be easily removable after installation. Face trim shall be of one piece construction 1" (25.4mm) wide with no welded miters and shall have square 1/4" (6.35mm) return to wall.
