Architectural Specification:

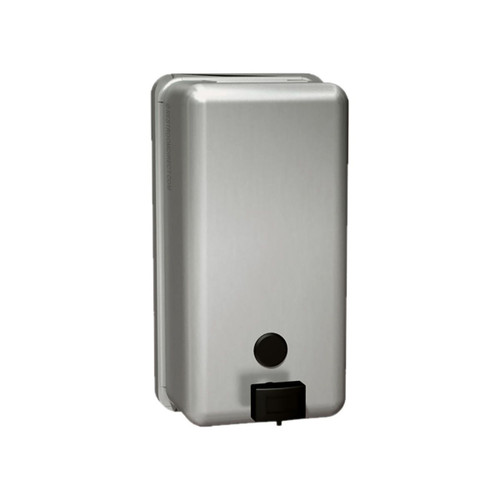

Unit is secured to a wall plate which issurface mounted to wall or partition using No10 self tapping screws(supplied). For maximum usability and compliance withADA Accessibility Guidelines, unitshould be installed so that valve is 54" (1371mm) maximum above finished floor (AFF) when clear side access is provided; 48" (1219mm) AFF. with forward reach access only and 46" (1168mm) with side reach over an obstruction (ie: vanity). Recommended installation is 42" (1066mm) AFF or 6" (152mm) minimum above wash basin.
