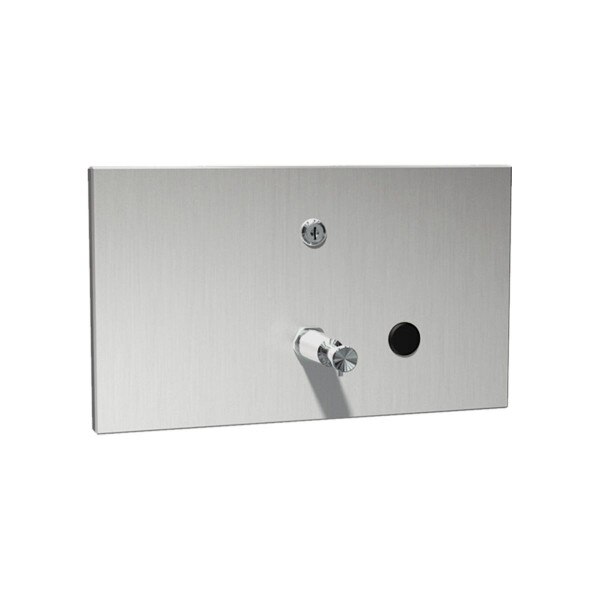

ASI 10-0326 Recessed (In-Wall) Soap Dispenser, Stainless Steel, High Capaacity, Locking Cabinet

(0) No Reviews yet
$100.00
SKU: 10-0326

IN STOCK

9 available for immediate shipment

Please note this dispenser is NOT compatible with Hand Sanitizer.

Stainless steel with satin finish, all-purpose soap valve, 57 fl. oz. (1.7 L) capacity of liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps. Shall dispense contents from a stem-type push-button valve. Valve operation complies with ADAAG and ICC/ANSI A-117.1 by providing actuation with a force less than 5 lbsf (22.2N) requiring only one (1) hand and with no tight grasping, pinching or twisting of the wrist required.

>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 2500
>pH Range: 5.5 ~ 8.5


Mount: Wall / Recessed
Operation: Push Button
Cover Material: Stainless Steel
Power: None
Soap Type: Liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan
Capacity: 57 oz.
Dispense Amount: Not published
Overall Dimensions: 10-1/4" Wide x 6" Tall x 6-5/8" Deep
(Projects 3" out from wall.)
Rough-In: 9" Wide x 4-7/8" Tall x 4" Deep
Net Weight: 4.5 lbs.
Shipping Dimensions: 11" Wide x 7" Tall x 7" Deep
Shipping Weight: 4.8 lbs.
Warranty: Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice.
UPC / GTIN: Not Published
Country of Manufacture: Not published
Buy American Act compliant
Comments: Unit may be refilled easily with a partial load in-place and will continue to feed properly until soap level is below valve intake port.

Architectural Specifications:



Recessed Soap Dispenser shall have a capacity of 57 oz (1.7 liters) of liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan and shall dispense contents from a stem-type push-button valve. Dispenser door, mounting frame and valve push-button shall be fabricated of stainless steel type 304 alloy 18-8. Door shall be 18 gauge and mounting frame shall be 22 gauge. Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment and have 1/2" (13) square returns to wall. Cabinet shall have no exposed fastening devices. Internal soap tank shall be seamless molded leak-proof polyethylene with a large open top for easy refilling. An impact resistant clear plastic liquid level indicator shall be provided. Valve shall be constructed of a chrome-plated brass body with stainless steel and plastic internal parts. Valve operation shall comply with ADAAG and ICC/ANSI A-117.1 by providing actuation with a force less than 5 lbsf (22.2N) requiring only one (1) hand and with no tight grasping, pinching or twisting of the wrist required. All exposed panel surfaces shall have a No 4 satin finish and face panel assembly with tank, sight gage and valve shall be protected during shipment in a plastic bag.
