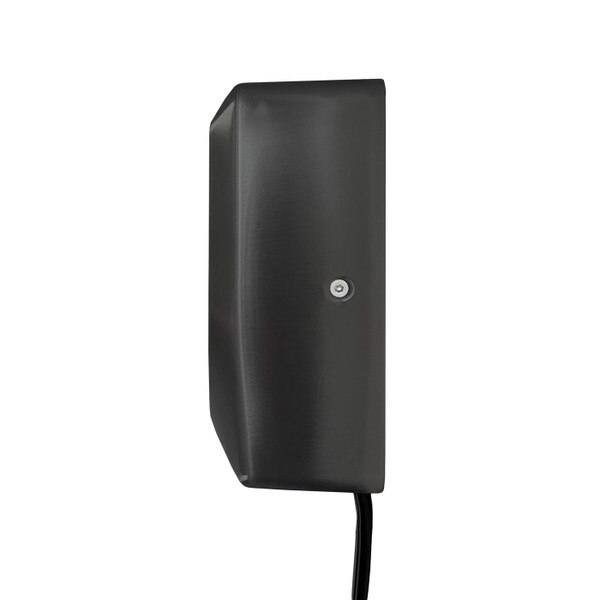

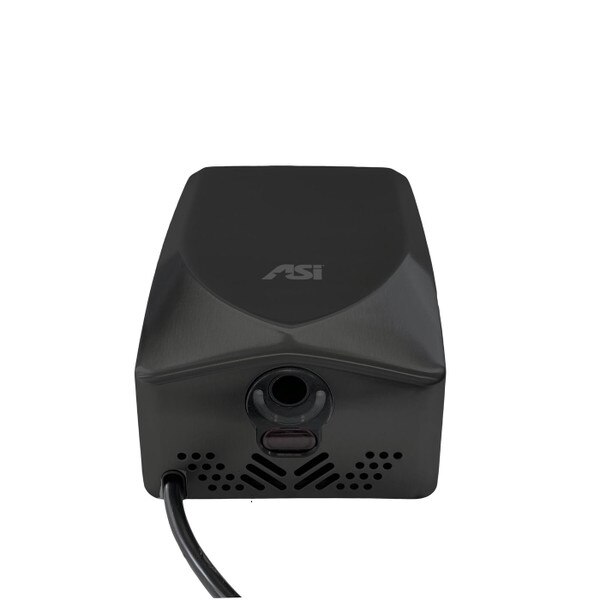

ASI 0192-1-93 Turbo Swift Black Stainless Steel ADA Hand Dryer
Details
 | ADA Compliant without recessing. Comes with cord for easiest install. May be hardwired for more secure installation. |
The ASI Turbo Swift high speed hand dryers are powerful, fast dryers in a small package. Dry times as low as 10-12 seconds! Sleek, modern, matte black finish.

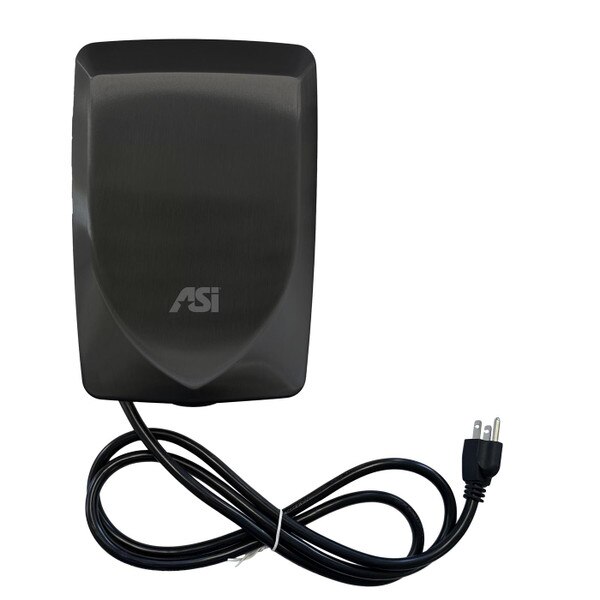

This dryer is also one of the few on the market that comes with a cord already attached for fast installation, but can also be hardwired for a traditional installation. And it is ADA compliant (projects less than 4 inches) when surface mounted.
A built-in LED indicates power status and guides user towards air flow. Heat and airspeed are both adjustable.
- Automatic (hands-free) operation with IR sensor.
- Concentrated blast of air dries hands more quickly.
- A heating element warms the air nicely for a more comfortable experience.
- 110-120V, 60Hz, 8.3 to 9.1A (1000 Watts)
Measurement Diagram:
Specs
| Activation: | Automatic (touchless) |

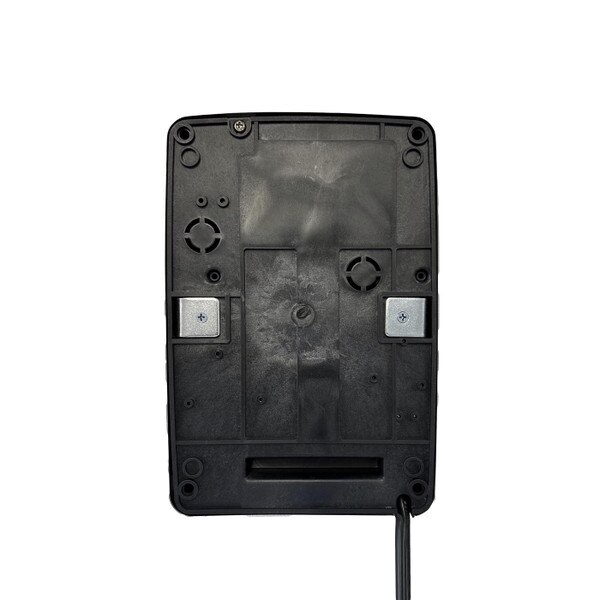

| Mount: | Wall Mount / Surface Mount (Hard Wired or Plug In) |
| Cover: | Stainless Steel |
| Finish: | Matte Black |
| Nozzle: | Concentrated Single Port |
| Power: | 110-120V, 60Hz, 8.3 to 9.1A, 1000 Watts |

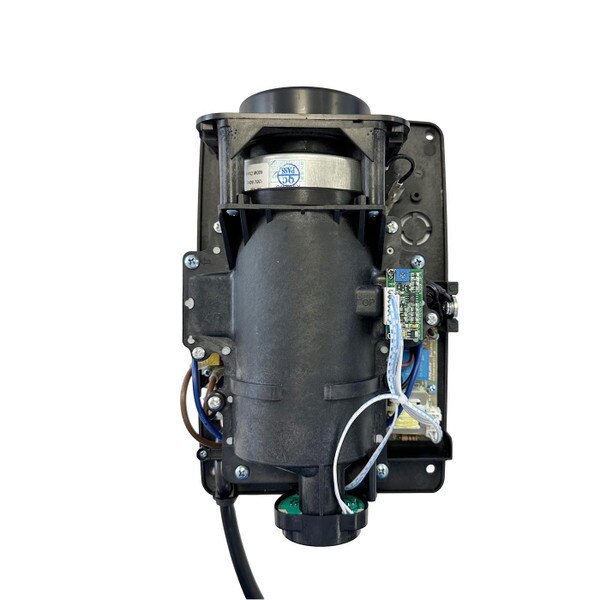

| Motor: | Brush Type, Dual Ball Bearings |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing |
| Motor Speed: | 30,000 RPM |
| Heating Element: | Nichrome wire with auto reset circuit breaker |
| Filter: | Coarse Particulate Filter |
| IP Rating: | IP23 |
| Noise Level: | 74.0 dB-A @ 2m |
| Overall Dimensions: | 6-27/32" Wide x 10-5/64" Tall x 3-31/32" Deep |
| Shipping Dimensions: | 11-3/4" Length x 8-5/8" Wide x 5-1/2" Height |
| Shipping Weight: | 14 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | 10-0192-1-93 |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturers |
