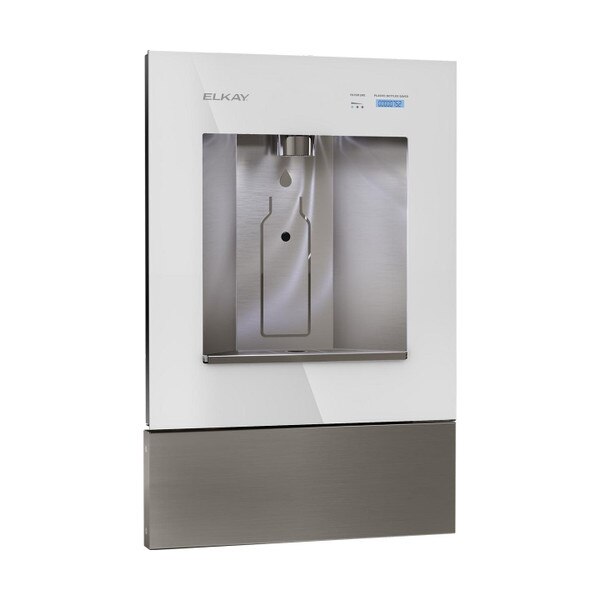

Elkay LBWDC00WHC ezH2O Liv PRO Filtered COMMERCIAL Bottle Filling Station (Aspen White, NON-refrigerated)
Details
 | IMPORTANT ! ! This bottle filler is non-refrigerated. It does NOT cool the water it dispenses. |
Distinguishing Features:Commercial Version • Aspen White • Non-Refrigerated
Serve guests and colleagues cleaner, healthier water in a sustainable way with a stylish in-wall filtered water dispenser designed for commercial environments. This hands-free water dispenser is designed for commercial and hospitality environments such as lobbies and conference rooms. Say goodbye to ordering expensive disposable bottled water that takes up precious storage space.
NOTE: While Elkay does not offer the LIV Pro with refrigeration, it can be added. The recommended chiller for this application is the ER51Y (5 GPH) or ER51Y (10GPH). In addition, there are some installation considerations which you can learn more about in our Article: Can I add Refrigeration to my Elkay LIV Pro Bottle Filler?.
- IN-WALL DESIGN: Install a filtered water dispenser in convenient commercial spaces such as waiting areas, conference rooms, lobbies and break rooms.

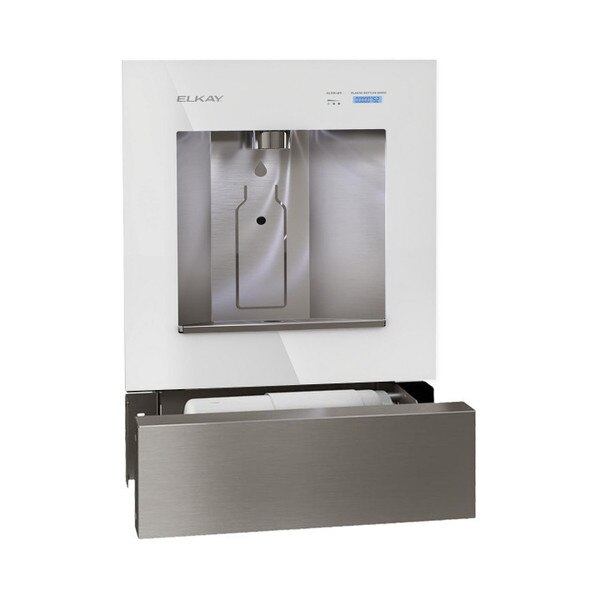

- FILTERED WATER: NSF-certified filter reduces lead and harmful contaminants; filter installs near unit or remotely without included filter panel.
- BOTTLES SAVED: Backlit LED Green Ticker counts the number of disposable, single-use plastic bottles served without the plastic bottle waste.
- SENSOR ACTIVATED: Hands-free filling with automatic timed shut off to help prevent accidental spills and messes.
- EASY INSTALLATION: Fits within the width and depth of two wall studs near water and electric; includes drip tray with optional drain connection.
- FILTER STATUS LIGHTS: Colorful lights indicate when quick and easy filter changes are needed.
This model comes with a Elkay ECF3000 filter which is good for 3000 gallons before it will need to be replaced.
Certifications:

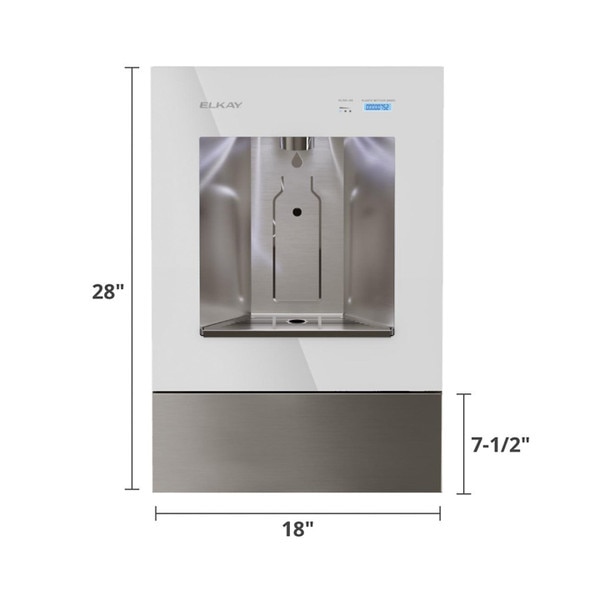

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Stainless Steel Alcove |
| Cabinet(s): | White Glass Fascia |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | Yes | Replacement filter ECF3000 |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 18" Wide x 28" Tall x 5-5/8" Deep (Projects 1-5/8" out from wall) |
| Rough-in: | Main Unit: 19-7/8" Tall x 14-1/2" Wide x 3-7/8" Deep Filter Drawer: 6-5/8" Tall x 14-1/2" Wide x 6-5/8" Tall x 2-3/8" Deep |
| Shipping Dimensions: | 29" Length x 19" Width x 9" Height |
| Shipping Weight: | 41 lbs. |
| UPC / GTIN: | 94902122083 |
| Manufacturer Model No.: | LBWDC00WHC |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O Liv Pro In-Wall Commercial Filtered Water Dispenser, Non-refrigerated. Features shall include Ambient Water, Hands Free, Visual Filter Monitor, Automatic Filter Status Reset, Filtered, Green Ticker™, Laminar Flow. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
