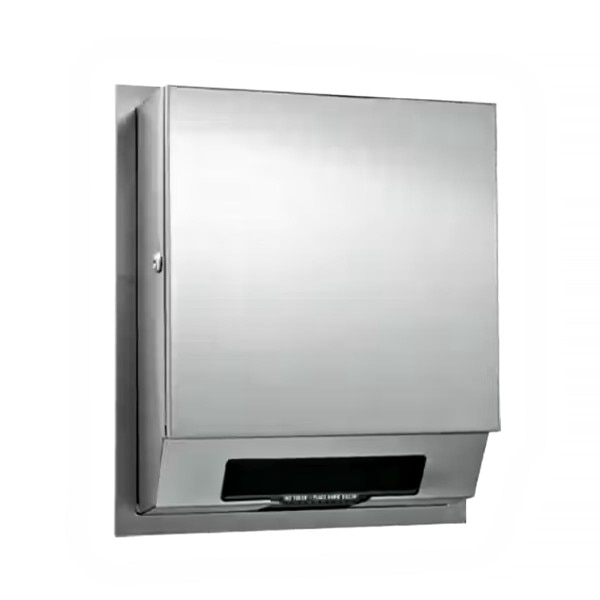

ASI 10-68523A-4 Simplicity Semi-Recessed Automatic Roll Towel Dispenser, Battery Operated
This proximity sensing no-touch paper towel dispenser serves a pre-set length per cycle from 8″ standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. Powered by 4 D-size batteries (not included). Includes frame for semi-recessed mounting. Projects 5-9/16" after recessing.
Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished and batteries are replaced manually. LED indicates sensing and battery condition. Locking door prevents unauthorized access and roll removal.
- Stainless steel construction with locking cabinet to prevent unauthorized access.
- Supports 4" Stub roll functionality with automatic transfer to back-up roll for ease of maintenance.
- Battery operated (no need for nearby power outlet).
- LED indicates sensor activation and low battery condition.

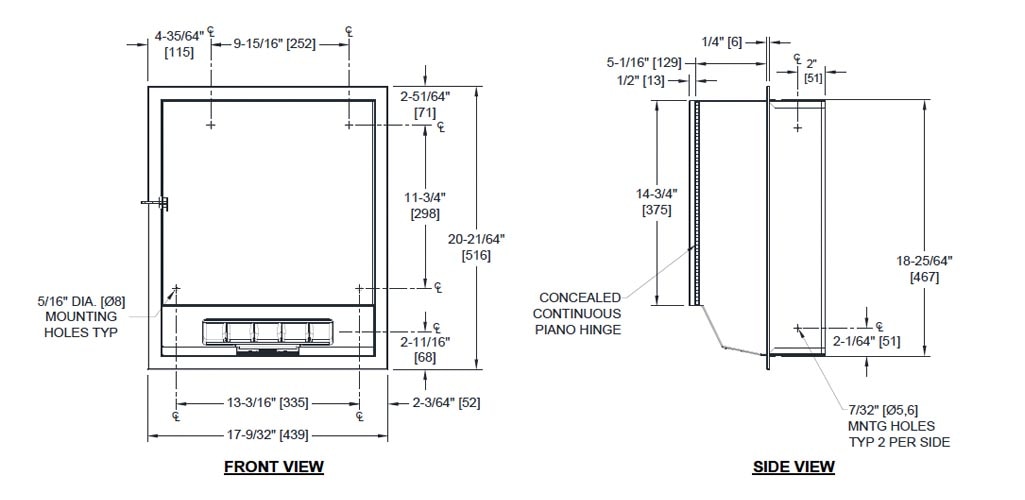

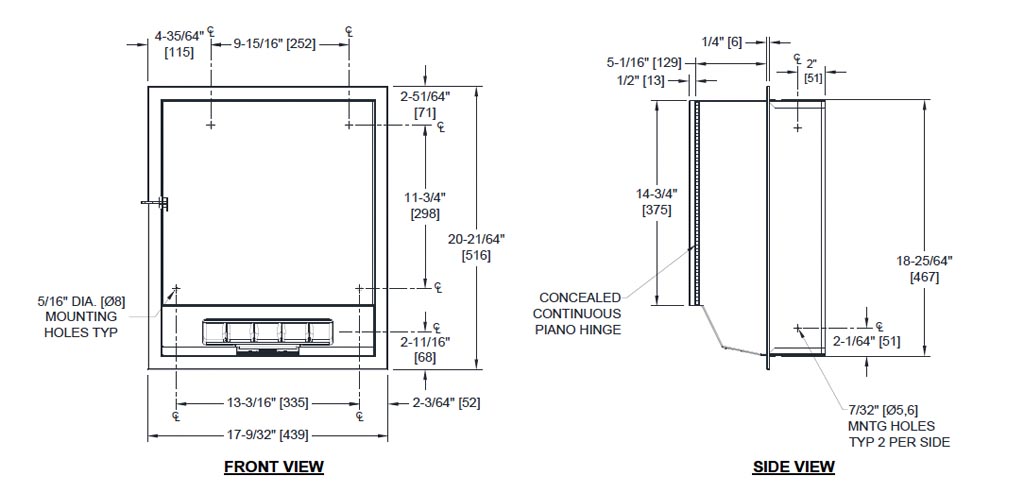

Measurement Diagram:
| Type: | Automatic, Roll Type Commercial Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | One 8" Dia., 8" Wide Roll One 4" Dia. 8" Wide Stub Roll |
| Power: | Battery Operated, D-Cell Batteries, 4 |
| ADA Compliant: | No (Projects 5-9/16" out from wall) |
| Overall Dimensions: | 17-9/32" Wide x 20-21/64" Tall x 9-13/16" Deep(br>(Projects 5-9/16" out from wall) |
| Rough-In: | 15-1/2" Wide x 19" Tall x 4-1/8" Deep |
| Shipping Dimensions: | 22.5" Length x 17" Width x 12" Height |
| Shipping Weight: | 20.4 lbs. |
| Manufacturer Model No.: | 10-68523A-4 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Taiwan |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Semi-Recessed Automatic Roll Paper Towel Dispenser shall hold and dispense one 8" wide [203] x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102]. Automatic Touchless Roll Towel Dispenser shall be powered by four (4) D-size batteries (not supplied) and operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. Unit shall feed out a length of towel during each activation selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Cabinet sides shall be 22 gage type 304 stainless steel alloy 18-8. Cabinet back and towel apron shall be 18 gage same grade. Towel dispenser door shall be 18 gage same grade and shall have a full return and formed sill at bottom edge for user safety. All exposed surfaces shall have satin finish protected by PVC film easily removed after installation. Door shall be attached to cabinet at side with a full-length 3/16" Dia. [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
