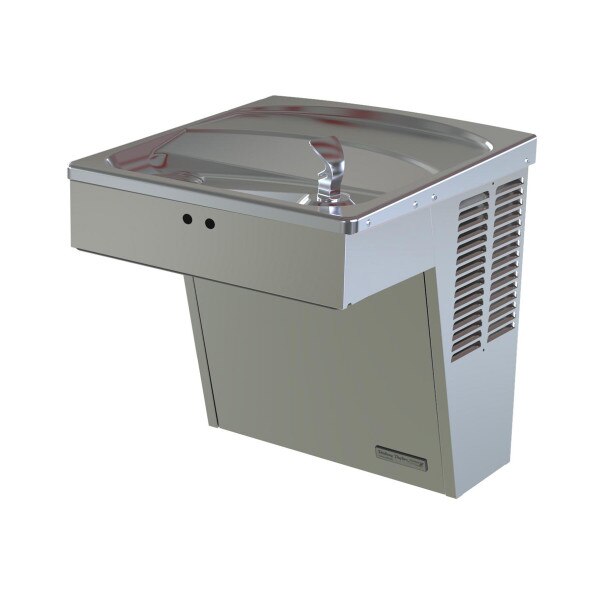

Halsey Taylor (HAC8EESS-NF) Hands Free Water Cooler, ADA, Stainless (Refrigerated, Non-Filtered)

Halsey Taylor sensor activated (touchless) single station ADA water cooler. 8 GPH chilling caacity. Stainless steel basin and cabinet (#4 architectural satin finish). Complies with ADA & ICC A117.1 accessibility requirements. Lead-free design, certified to NSF/ANSI 61 and 372 standards. Delivers 8 gallons per hour of 50F drinking water (based on 90F ambient air and 80F inlet water temperatures). Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication. Secure (but easily accessible with tools) adjustable thermostat. This unit is not filtered however, a filter may be added using HWF3000 retrofit filter kit (not included, purchased separately).

• Sensor actuated solenoid valve with built in time delay that automatically shuts off after 30 seconds

• Extra deep basin minimizes splashing; with integral drain

• Exclusive one-piece, Chrome-plated two-stream Double Bubbler with non-removable anti-squirt feature and integral hood that insures a satisfying drink of water

• Flow regulator provides constant stream from 20 to 105 psi water pressure

• Rated for indoor use

• Finish: Stainless steel

---

Certifications:



---

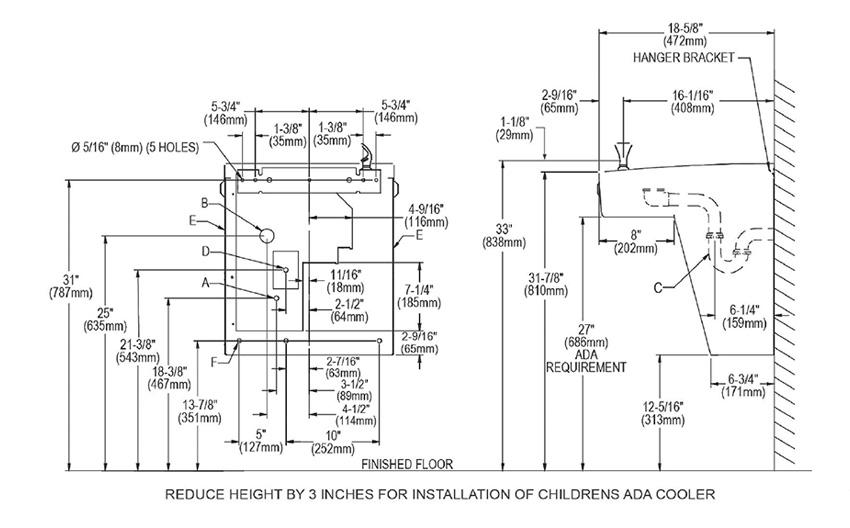

Measurement Diagram:

---
