Elkay (EZWS-EDFPBM117K) In-Wall EZH2O Bi-Level SwirlFlo Fntn (Non-refrigerated, Non-filtered)

(0) No Reviews yet

This product will ship form the manufacturer in 12 days.

IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses.

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete water station including bi-level fountain with integral bottle filler. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer. SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface. Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler).

  • Fill rate is 1.5 GPM.

  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.

  • Laminar flow provides clean fill with minimal splash.

  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.

  • Real drain system eliminates standing water.

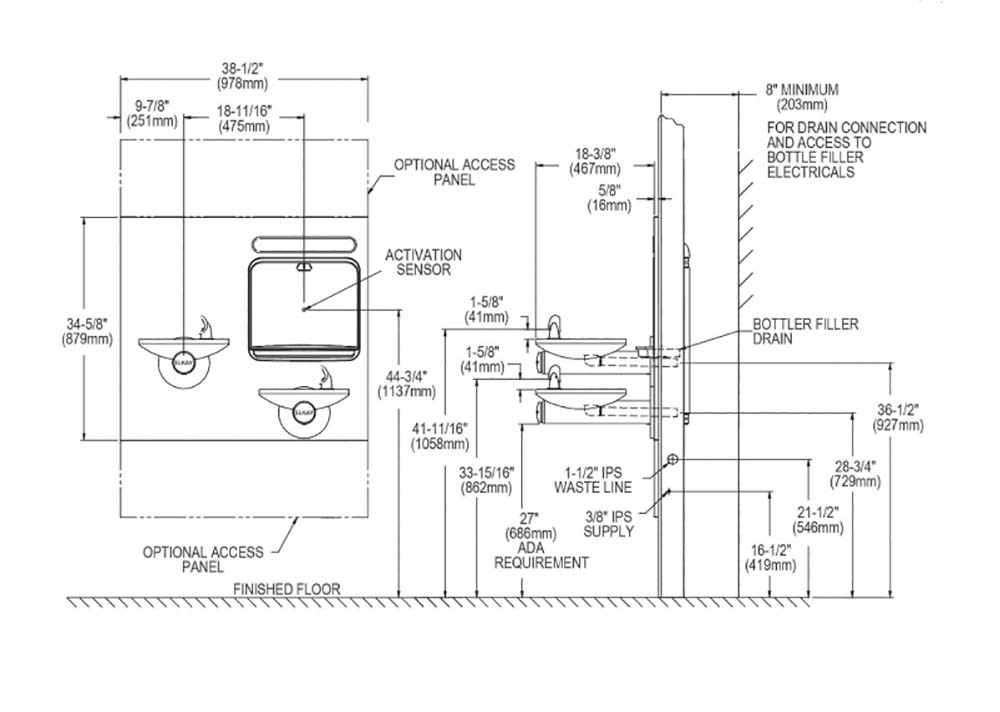

Measurement Diagram:

Installation Location: Indoor
Number of Stations: Two (2) drinking fountains plus one (1) HydroBoost bottle filling station
Mount: Wall / Recessed
Operation: One (1) automatic (infra-red sensor) bottle filler, and
two (2) push button drinking fountains
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: No
Filtered: No
Power: 110-120V (Standard)
Status Display: LCD Green Ticker Bottle Counter
Overall Dimensions: 38-1/2" Tall x 19" Width x 34-5/8" Deep
Rough-in: 31-1/2" Tall x 37-1/2" Wide x 3-7/8" Deep
Shipping Dimensions: Box 1: 41-5/8" Length x 39-7/8" Width x 26-1/8" Height
Box 2: 39-1/4" Length x 19-1/8" Width x 8-1/2" Height
Shipping Weight: 118 lbs.
UPC / GTIN: 094902015651
Manufacturer Model No.: EZWS-EDFPBM117K
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:


Elkay ezH2O® Bottle Filling Station with Bi-Level Integral SwirlFlo® Fountain, Non-Filtered Non-Refrigerated Stainless. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
