  • Bobrick (B-518116x28) White, Vinyl-Coated, Folding Bathtub Seat

Bobrick (B-518116x28) White, Vinyl-Coated, Folding Bathtub Seat

(0) No Reviews yet
$587.71
SKU: B-518116x28

This product will ship from the manufacturer in about 3 days.

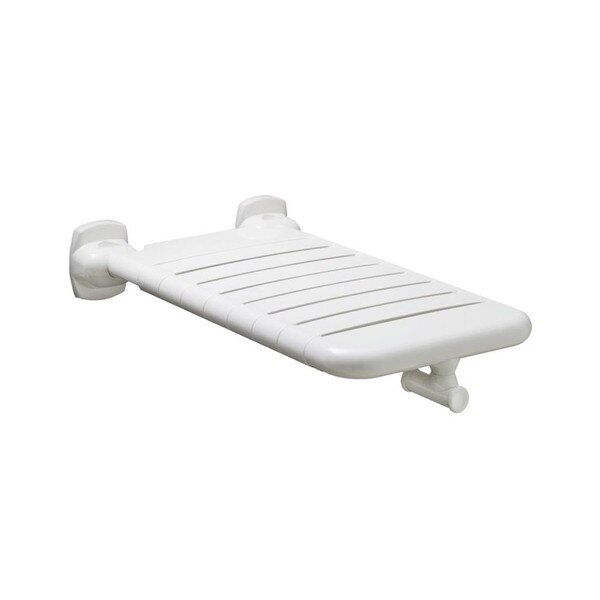

Folding In-Tub Bathtub Seat is used to sit on while showering. Seat folds up against wall when not in use. Vinyl-coated seat has a frame constructed of zinc-plated 3/4" steel tubing with white, vinyl ,antibacterial, warm-to-the-touch coating thickness.

Seating area is 15" (336mm) wide by 28" (711mm) in length to rest on end of bathtub.


  • Requires one hand operation to manually lower to horizontal position for use or to raise for departure and arrival.

  • Flanges hold Seat in upright position until released by pulling the top of the Seat away from the wall.

  • Complies with accessible design guidelines (including ADAAG in the U.S.A.).

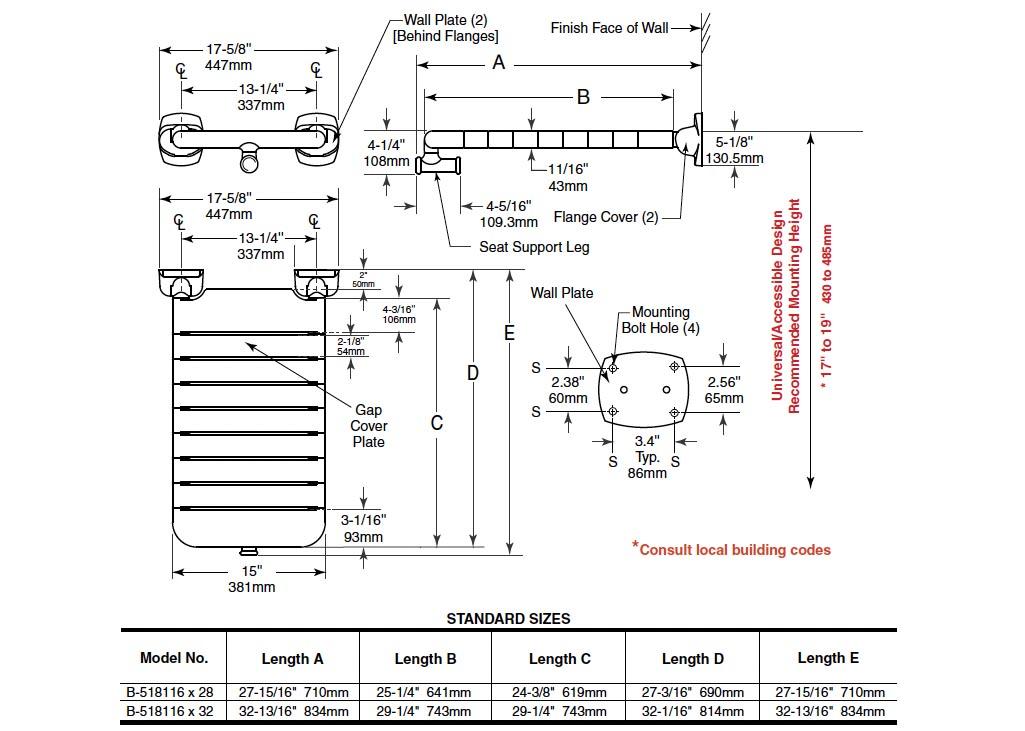

Measurement Diagram:


Installation Type: Wall / Surface
Frame Material: Zinc-Plated Steel
Seat Material: Nylon
Capacity: 451 lbs
Operation: Fold-Up
Overall Dimensions: 17 - 5/8" Wide x 5" Tall x 28" Deep
Net Weight: 16.65 lbs
Shipping Dimensions: 30" Length x 20" Width x 4" Height
Shipping Weight: 14.5 lbs.
Manufacturer Model No.: B-518116 x 28
UPC / GTIN: 716954012043
Country of Manufacture: Italy
Warranty: 1 Yr. Manufacturer's Limited

Architectural Specifications:



Vinyl-coated Folding Bathtub Seat shall have a frame constructed of zinc-plated 3/4" steel pipe 1/10" (2.5mm) wall thickness, 1/8" (3mm) white vinyl antibacterial, biocompatible, and warm-to-the-touch coating thickness, 1-5/16" (33mm)outside diameter. Seat shall be 15" (380 mm) wide, polyamide 6 with glossy finish slats on top and bottom surfaces. Bathtub Seat shall be equipped with two Mounting Flanges constructed of stainless steel Inox Type 304, 1/8" (3mm) thick wall plate with four mounting bolt locations for 3" (75mm) long 5/16" hex-head lag bolts and polyamide 6 flange cover. Seat shall remain in upright position when not in use. Bathtub Seat shall comply with accessible design guidelines (including ADAAG in the U.S.A..).
