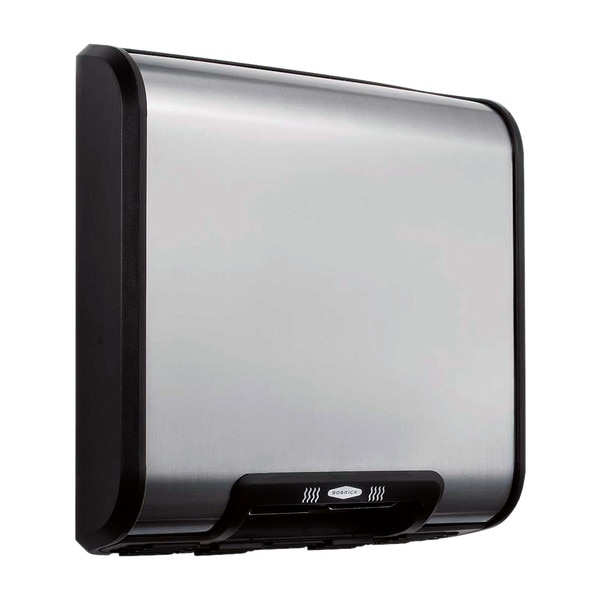

Bobrick TrimDry (B-7128) High Speed Narrow Profile, Automatic Hand Dryer, 110-120V, Brushed SS

(0) No Reviews yet
$616.17
SKU: B-7128-120

IN STOCK

69 available for immediate shipment

The TrimLine is surface mount ADA compliant!

This narrow profile hand dryer is both attractive and effective! Dual-flow air ducts (and twin fan blades) allow for a quick dry time with less noise (74db) than comparable hand dryers. 4" projection compies with ADA guidelines without the necessity of recess mounting. Touch free infra-red sensor helps minimize the spread of germs through contact. Sturdy 22-guage metal cover with ABS side panels.


  • 15-18 Second dry time

  • Vandal resistant stainless steel cover

  • Quiet operation

  • 110-120V, 1725 Watts (15A)

  • 90 Second safety shut-off

  • 10 year Bobrick limited manufacturer's warranty



Certifications:

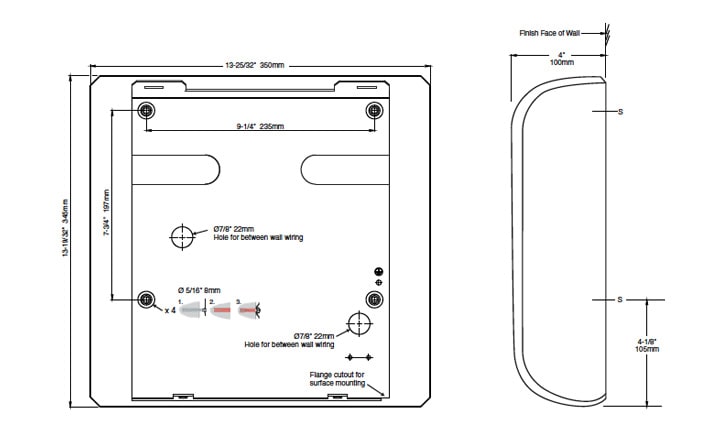

Measurement Diagram:


Reported Dry Time: 15-18 Seconds
Mount: Wall / Surface
Cover: 22-gauge galvanized steel with exposed surface type-304 stainless steel with #4 satin-finish vertical grain.
Nozzle: Dual air outlets.
Activation: Automatic (infra-red), 90 second safety shut-off
Power: 110-120V, 1725 Watts (15A), 50/60Hz
Motor: Universal, 1/7 hp, 8000 rpm, on resilient mounting.
Sealed ball bearing at drive-shaft end and self lubricating
sleeve bearing at non-drive end.
Fan: Two balanced, double-inlet centrifugal fans
Airspeed: 71 CFM
Reported Sound Level: 74 dB
Heating Element: Two coiled nickel-chrome heating elements mounted in mica frame, thermal shut-off switch. Protected from outside contact.
Filter: None
IP Rating: Not published
Product Dimensions: 13-25/32" Wide x 13-19/32" Tall x 4" Deep
Product Weight: 13 lbs.
Shipping Dimensions: 15" Length x 15" Width x 5" Height
Shipping Weight: 14 lbs.
UPC / GTIN: 716954001870
Manufacturer's Part No.: B-7128 115V
Country of Manufacture: China
