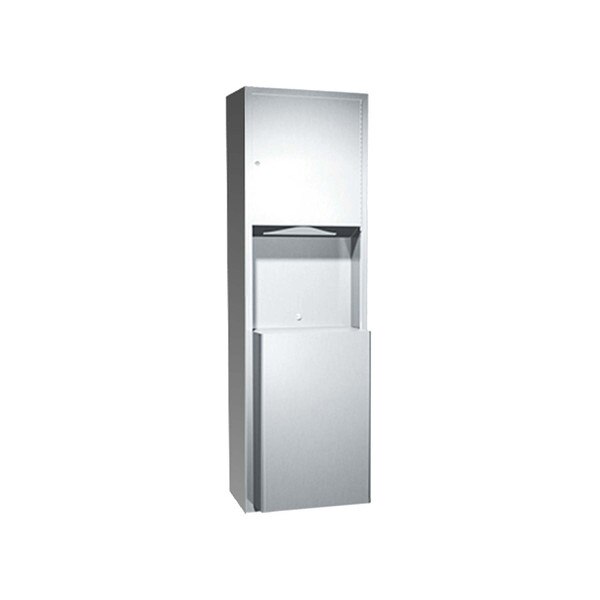

ASI 10-0469-9 Multi/C-Fold Paper Towel Dispenser & Waste Rec., Surface Mt, 12 Gal. (600C/800M)

(0) No Reviews yet
SKU: 10-0469-9


3 available for immediate shipment

Dispenses 600 C-fold or 800 multi-fold paper towels. 12 gal. (46 L) stainless steel waste receptacle.

Surface mounted with stainless steel collar.

Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Waste container is emptied manually on cycle determined by maintenance needs. Locking compartment and receptacle retainer prevents unauthorized access or removal.

Type: C-Fold / Multi-Fold Paper Towel Dispenser
with Integrated Waiste Container
Primary Material: Stainless Steel
Color / Finish: Satin (Brushed)
Installation Type: Wall / Surface
Capacity: 600 C-Fold or 800 Multi-Fold Paper Towels
Waste Bin Capacity: 12 Gal.
Power: No power required
ADA Compliant: Yes (Projects > 4", but is cane detectable)
Overall Dimensions: 17-1/4" Wide x 56" Tall x 8-1/4" Deep
Rough-In: Not Applicable
Shipping Dimensions: 58" Length x 19" Width x 9" Height
Shipping Weight: 49.3 lbs.
Manufacturer Model No.: 10-0469-9
UPC / GTIN: Not published
Country of Manufacture: Not published
Warranty: Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice.
Additional Comments: Tumbler locks use ASI key: E-114.

Architectural Specifications:


Surface Mounted Paper Towel Dispenser and Waste Receptacle supplied with SM collar shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels and shall have a waste capacity of 12 gal (46 liters). Towel dispenser, door, unit frame, cabinet, waste container and SM collar shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Door shall be fabricated in doublepan construction with fiberboard filler and shall be attached to cabinet at side with a full-length 3/16" diameter (Ø4.8mm) stainless steel multi-staked piano hinge and be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety and shall be retained by a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" (25.4mm) wide formed from one piece with no miters, welding or open seams and have 1/4" (6.4mm) square return to wall. Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
