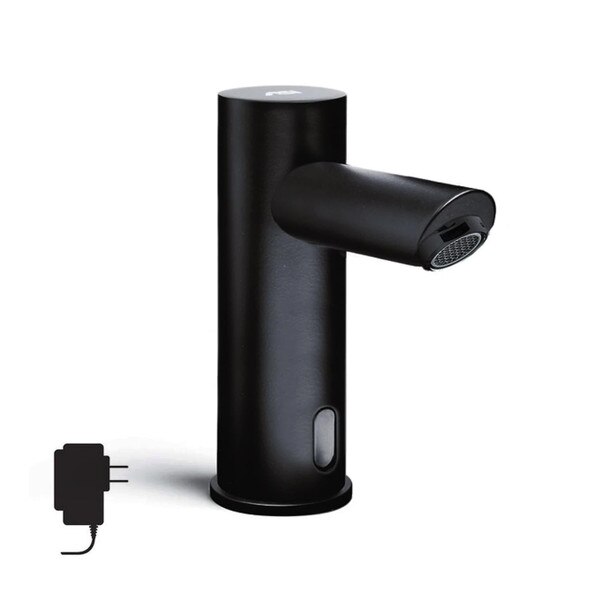

ASI EZ FILL™ 10-0397-1AC-41 Water Faucet - (AC Adapter) - Polished Finish - Matte Black
Distinguishing Features: Matte Black Finish • AC Adapter
Matching automatic water faucet for EZ Fill™ soap dispensing system. Faucet body constructed of heavy duty brass. Matte black finish. 110-120V (AC Adapter included). Lead-free construction. ADA compliant. LED status indicator.
- A/C Version Plugs into Electrical Outlet
| Brand: | ASI EZ Fill |
| Manufacturer Model No.: | 10-0397-1AC-41 |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Construction: | Heavy Duty Brass, Polished Matte Black Finish |
| Mount: | Counter Top (Deck Mount) |
| Faucet Holes: | One (1) |
| Flow Rate: | Not published |
| Power: | 110-120V, 60Hz (AC Adapter, included) |
| Spout Height: | 3-5/8" |
| Spout Reach: | 3-5/8" |
| ADA: | Yes |
| Lead Free: | Yes |
| Included: | Faucet assembly and AC adapter |
| Overall Dimensions: | Above Counter: 1-3/4" Wide x 6-5/8" Tall x 4-3/4" Deep |
| Shipping Dimensions: | 14" Length x 13" Width x 4.5" Height |
| Shipping Weight: | 6.2 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Taiwan |
| Warranty: | 2 Year Manufacturer's Limited |
Architectural Specifications:
Matching water faucet for EZ Fill™ soap dispensing system. Constructed of matte black spout and battery or AC power operated, hands-free sensor housing with a highly polished finish over all surfaces.
System shall operate each time an object is positioned within the sensing range of 1-3/16" to 3-15/16" [30 to 100] ± 3/8" [10] directly in front of the spout of the dispenser. Optional remote control unit will allow owner programming of alternate dispense amounts. See Owner’s Manual for complete description of functions.
