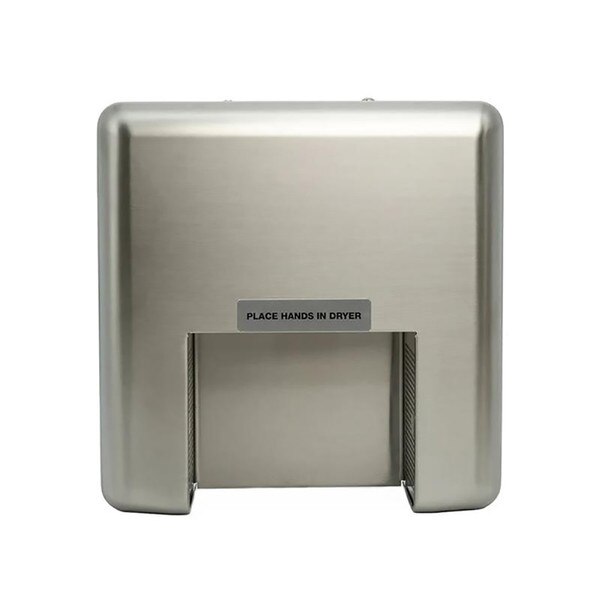

Pinnacle (P3-12S) Automatic ADA Hand Dryer - Surface Mount
The Pinnacle P3-12S is a touchless, surface mount hand dryer. It is automatic, vandal resistant, dries hands in 12-15 seconds, and comes with a 10-year warranty. This model extends 4" from the wall when installed. All new solid-state circuitry has completely eliminated all mechanical parts. Unit is activated by an infrared sensor when hands are placed in drying chamber. Dryer operates only when in use.
Stainless Steel Cover and Drying Chamber
Vandal Resistant
Low Power Consumption
ADA Compliant ONLY 4" DEEP

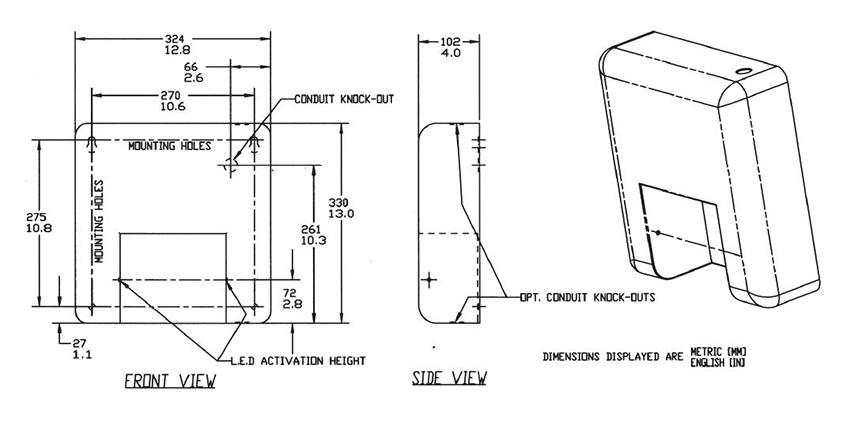

Measurement Diagram:
| Mount: | Surface Mounted |
| Fan Rotor: | Pressed, Galvanized and Electrically Balanced, delivering 150 cfm |
| Power Consumption: | 11 amps, 1.25 KW at 120 Vac Nominal |
| Net Weight: | 12 lbs. |
| Motor: | Heavy Duty, 7500 RPM, Double-Insulated, CSA & UL Component Approved. |
| Cover: | 20 Gauge Stainless Steel |
| Manufacturer Model No.: | Model P3-12S |
| Warranty: | 10 Year warranty |
| Heating Element: | 1000W Heavy-Duty, Thermally protected to cut out at 85° C |
