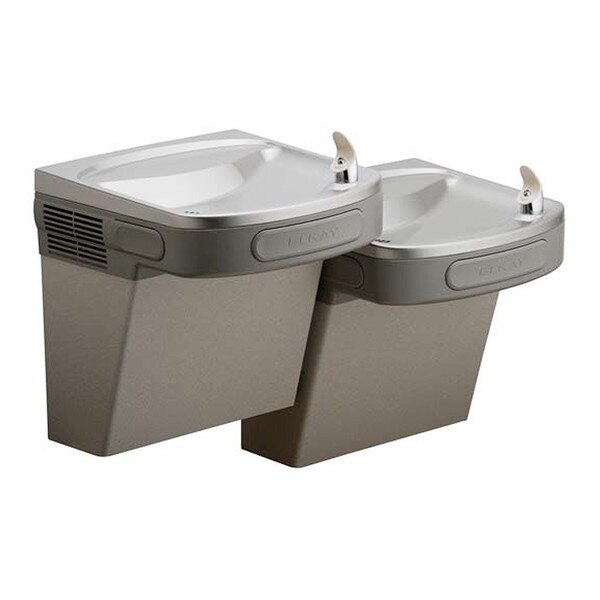

Elkay (LZSTLG8LC) Wall Mount, Refrig., Filtered, Green Spec, Bi-level ADA Water Fountain, Lt Gray

(0) No Reviews yet

This item will ship from the manufacturer in about 5 days.

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.

NOTE: Tthis product is versatile. To learn more about what that means, see our FAQ: Versatile vs Reversible explanation

  • High-performance compressor and insulation greatly reduces energy consumption.

  • Electronic bubbler push bars for easy activation.

  • Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.

  • Vandal-resistant bubblers feature chrome plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.

  • Equipped with StreamSaver low-flow bubbler.

  • GreenSpec Listed and badged to demonstrate commitment to sustainability.

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.

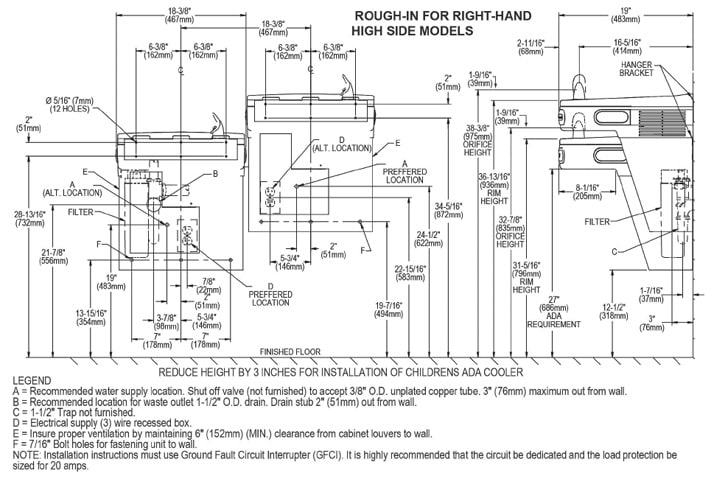

Measurement Diagram:

Installation Location: Indoor
Number of Stations: Two (2) drinking fountains
Mount: Wall / Surface
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Vinyl Clad Steel (Light Gray Granite)
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled ?: Yes
Cooling Capacity: 8 GPH
Filtered ?: Yes | Replacement filter 51300C
Power: 110-120V (Standard)
Status Display: None
Product Dimensions: 25-5/16" Tall x 36-3/4" Width x 19" Deep
Net Weight: 69 lbs.
Shipping Dimensions: 34.1875" Length x 20.5" Width x 19.6875" Height
Shipping Weight: 74 lbs.
Manufacturer Model No.(s): LZSTLG8_1A, LZSTLG8*1A
UPC / GTIN: 094902014654
Country of Manufacture: United States
Warranty: 5 Yr. Manufacturer's Limited

Architectural Specifications:


Elkay Wall Mount Bi-level Versatile ADA Cooler Filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Energy Savings, Filtered. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
