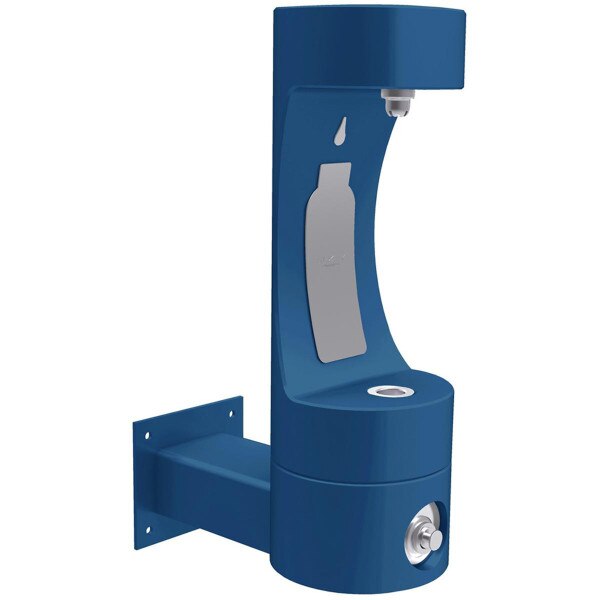

Elkay (LK4405BFFRKBLU) Outdoor EZH2O Bottle Filling Station, Wall Mount, Freeze Resistant, Blue
Outdoor Bottle Filling Stations are ideal for educational campuses and recreational areas. Freeze resistant valves and powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide ultimate protection from the elements.
Beautiful vibrant colors for every environment. Easily identifiable large bottle graphic promotes greater awareness and use.
Fully sealed, freeze-resistant system minimizes ground water contamination and prevents drain water from mixing with fresh water.
Corrosion-resistant base material provides the ultimate protection from the elements.
Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
Ideal for outdoor use.
Laminar flow provides clean fill with minimal splash.
Certifications:

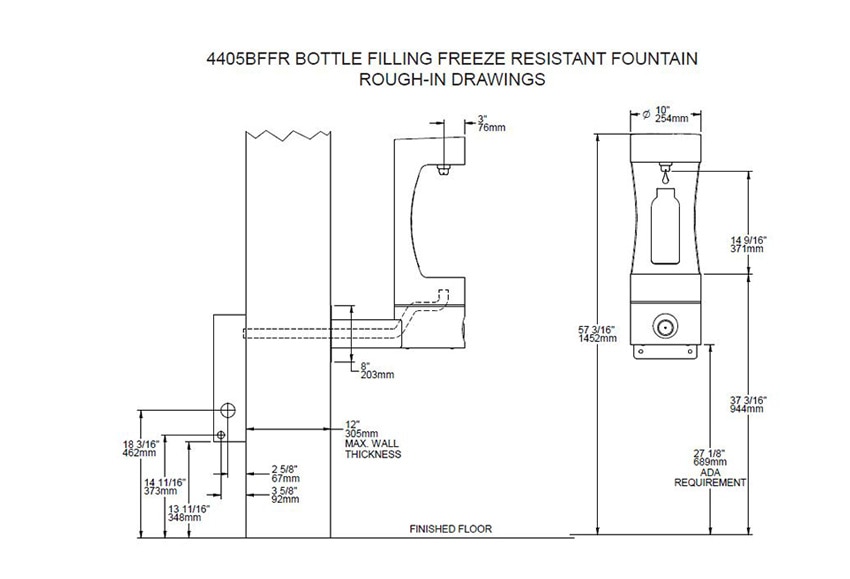

Measurement Diagram:
| Installation Location: | Outdoor / Wall-mounted |
| Configuration: | (1) EZH2O bottle filling station |
| Cabinet Material: | Type 316 Stainless Steel |
| Basin(s): | None |
| Bubbler(s): | None |
| Cooled: | No |
| Cooling Capactiy: | Not Applicable |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Product Dimensions: | 10" Wide x 32" Tall x 19-1/8" Deep (Surface portion only) |
| Net Weight: | 107 lbs. |
| Shipping Dimensions: | Box 1: Not Published (LK4405BFFRBLU) Box 2: 36" Length x 6" Width x 6" Height |
| Shipping Weight: | 112 lbs. |
| UPC / GTIN: | 094902061702 |
| Country of Manufacture: | United States |
| Warranty: | 1 Year Manufacturer's |
Architectural Specifications:
Elkay Outdoor ezH2O® Single Arm Bottle Filling Station Wall Mount, Non-Filtered Non-Refrigerated Freeze Resistant. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow, Sealed Freeze Resistant. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Outdoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
