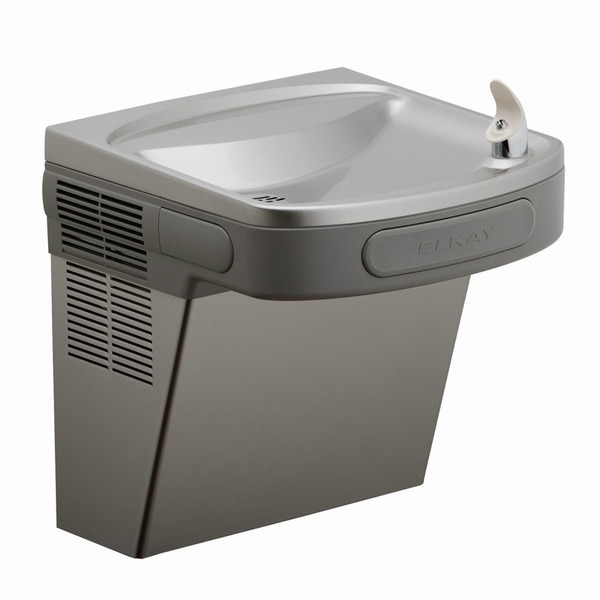

Elkay EZSG8L Wall Mount, Water Cooler, Green Spec, 8 GPH, Lt Gray, (Refrigerated, Non-Filtered)
The new Elkay EZ Green models take our most popular series and kick it up a notch. This series outperforms the average market energy-efficiency performance by more than 40%. Easy-touch pushbar controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
High-performance compressor and insulation greatly reduces energy consumption.
Electronic bubbler push bars for easy activation.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Equipped with StreamSaver low-flow bubbler.
Vinyl clad finish is durable and attractive.
GreenSpec Listed and badged to demonstrate commitment to sustainability.
Certifications:

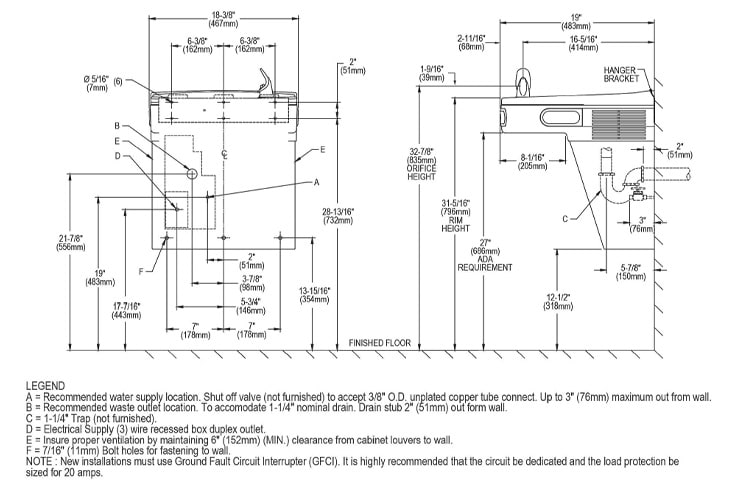

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 19-13/16" Tall x 18-3/8" Width x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 24-3/8" Height x 19-11/16" Width x 20-1/2" Length |
| Shipping Weight: | 51 lbs. |
| UPC / GTIN: | '094902014104 |
| Manufacturer Model No.: | EZSG8L |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount High Efficiency ADA Cooler Non-filtered Refrigerated Light Gray Granite. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Energy Savings. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Electronic Front Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
