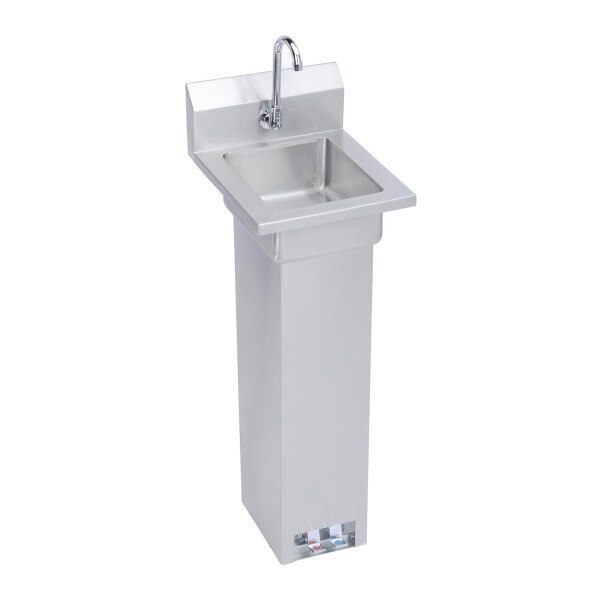

Elkay EHS-14-PEDX Hand Sink w/Pedestal Base Foot Valve and Faucet, SS, 14" x 16-1/2" x 47"

(0) No Reviews yet

This product will ship from the manufacturer in 3 days.

Elkay floor mount 18 gauge stainless steel hand sink with backsplash. Includes pedestal base, foot valve controls for hot and cold and a gooseneck faucet. Designed for foodservice applications. Overall dimensions are 14” Wide , 16-1/2” Deep, 47” High with the bowl measuring 10” Wide, 12” Front to Back, 5” Deep. Backsplash height is 6”. Strainer is included. Drain size is 1-1/2”. NSF 372 (lead free) certified.

  • High quality 18 gauge, #4 satin finish stainless steel

  • Pedestal base and foot valve for easy, hands free operation

  • Lead free faucet and strainer included with product

  • NSF Certified

  • Full length 6" backsplash

  • 1-1/2" drain size

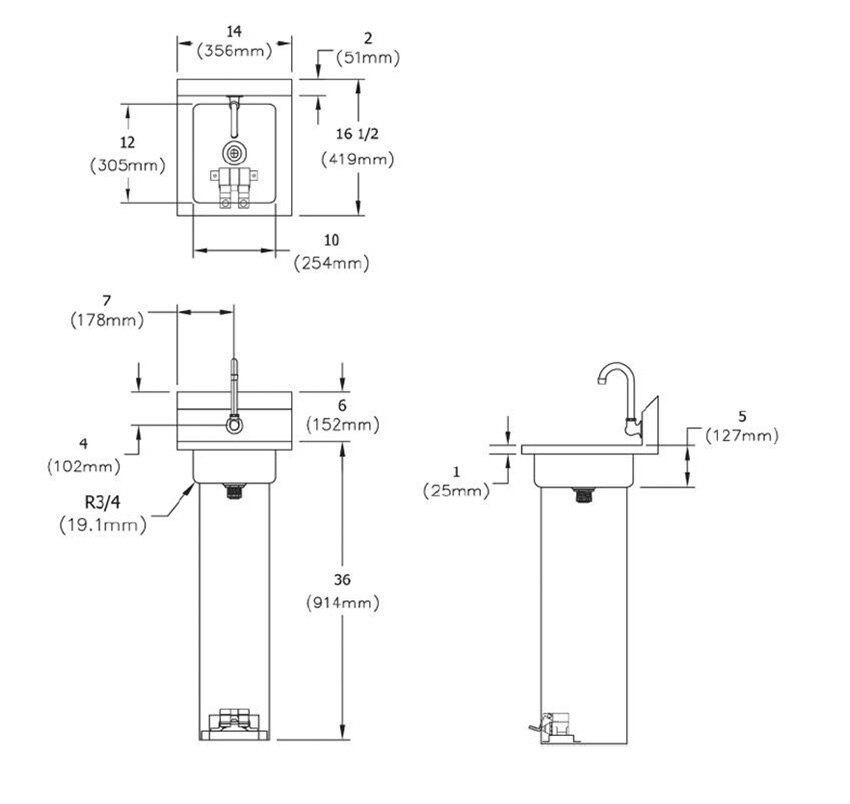

Measurement Diagram:

Brand: Elkay
Type: Wash Stations (with Faucet)
Stations: 1
Mount Type: Floor (anchored to wall)
Application Type: Foodservice
Mount: Floor (anchored to wall)
Material: Stainless Steel
Gauge: 18
Bowl Dimensions: L: 10" W: 12" H: 5"
Drain Size: 1-1/2"
Faucet Type: Automatic (Hands Free)
Drain Included: Yes
Sound Deadening: No
Overall Dimensions: L: 14" W: 16-1/2" H: 47"
Shipping Dimensions: L: 20" W: 72" H: 17"
Shipping Weight: 62 lbs.
UPC / GTIN: 094902677972
Country of Manufacture: China
Warranty: 5 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:


Elkay Stainless Steel 14" x 16-1/2" x 42" 18 Gauge Hand Sink with Pedestal Base Foot Valve and Faucet. Sink is manufactured from 18 gauge Stainless Steel with a #4 Finish finish, Center drain placement.
