Bobrick (B-3513.MBLK) TrimLineSeries| Recessed, Sanitary Napkin Disposal, Matte Black Stainless Steel
Recessed unit with matte black powder coat finish stainless steel unit with removable waste receptacle. Door secures to cabinet with a magnet catch and cable door-swing limiter. Waste receptacle has a capacity of 0.6-gallons (2.3-L). Rough wall opening: 162mm x 314mm x 95 mm (6 - 3/8″ W x 12 - 3/8″ H x 3 - 3/4″ minimum depth).
Inner waste container is removeable.
Door secures to cabinet with a magnet catch and cable door-swing limiter.
Waste Receptacle — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Removable for servicing. Capacity: 0.6-gal. (2.3-L).
Minimum recessed depth required from finish face of wall is 3-3/4"
Secured to cabinet with two rivets and equipped with a magnet catch and cable door-swing limiter
Type-304, heavy-gauge stainless steel 0.6-gal. (2.3-L) waste receptacle

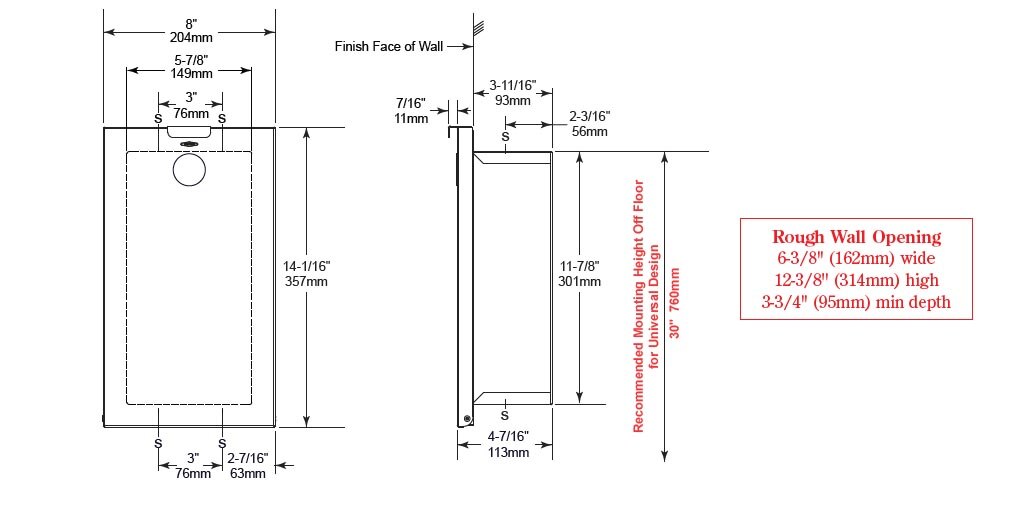

Measurement Diagram:
Alternatives:
For the brushed stainless steel version, see Bobrick B-3513 brushed stainless steel sanitary napkin disposal.
| Brand: | TrimLineSeries |
| Manufacturer Model No.: | B-3513.MBLK |
| Mount: | Wall / Recessed |
| Primary Material: | 18-8, Type-304, 20-gauge (0.9mm) stainless steel |
| Finish: | Matte black powder coat |
| Capacity: | 0.6 Gal. (2.3L) |
| Lid or Cover: | Cover swings out |
| Locks: | No |
| Overall Dimensions: | 8" Wide x 14-1/16" Tall x 4-7/16" Deep (Projects 1-1/4" out from face of wall) |
| Rough-In: | 6-3/8″ W x 12-3/8″ H x 3-3/4″ min. depth (162mm x 314mm x 95mm) |
| Shipping Dimensions: | 14.1" Length x 8.1" Width x 4.5" Height |
| Shipping Weight: | 5 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's |
| Additional Comments: | Waste receptacle is removable for servicing. |
Architectural Specifications:
Recessed sanitary napkin disposal shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be Type-304, 20-gauge (0.9mm) stainless steel with matte black finish. Secured to cabinet with two rivets and equipped with a magnet catch and cable door-swing limiter. Waste receptacle shall be Type-304, heavy-gauge stainless steel. All-welded construction with a capacity of 0.6-gal. (2.3-L).
