Bradley (8170-158000) Swing-Away Grab Bar 1-1/2" O.D - 33-1/4" H - Extends 29-3/4"

(0) No Reviews yet
SKU: 8170-158000

This product will ship from the manufacturer in 10 days.

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

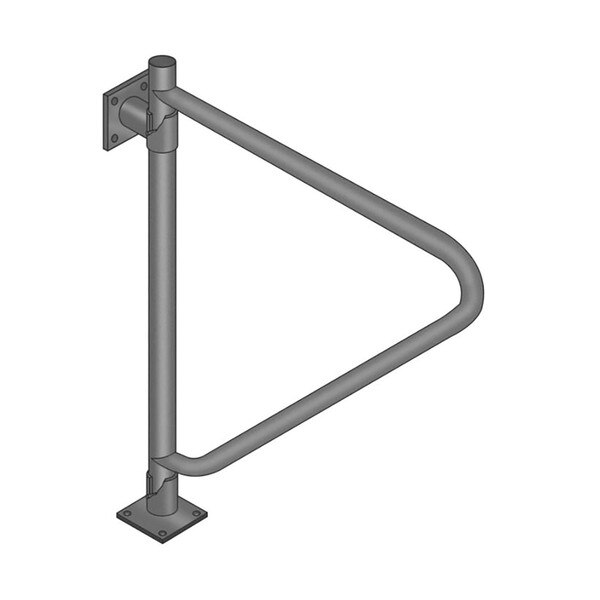

Top quality Bradley grab bar designed for commercial restroom applications. Exposed flange in architectural satin finish. 18 gauge stainless steel tubing. Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Grab bar projects 30 inches and is 33 - 1/4 inches tall. Grab bar can rotate 90 degrees when not needed. When properly mounted, grab bar meets or exceeds the strength requirements for ANSI A117.1.

  • 1-1/2" O.D.

  • Heavy-Duty Satin Finish Stainless Steel

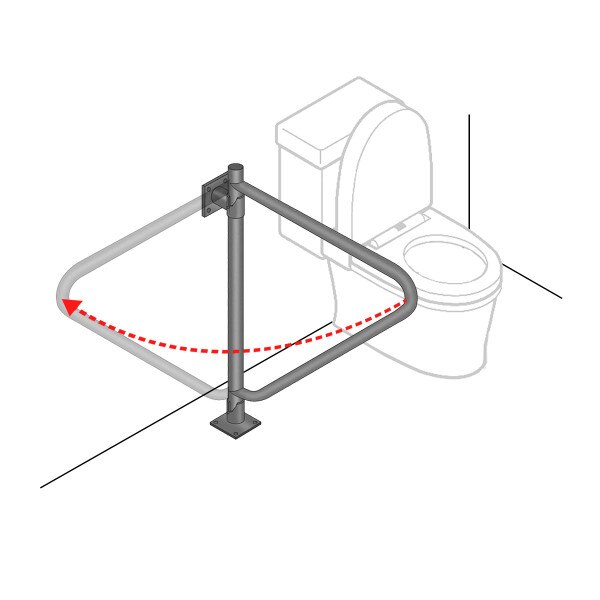

  • Can be rotated 180° - locks into support position, then swings away

  • Left- or Right-Hand Mounting

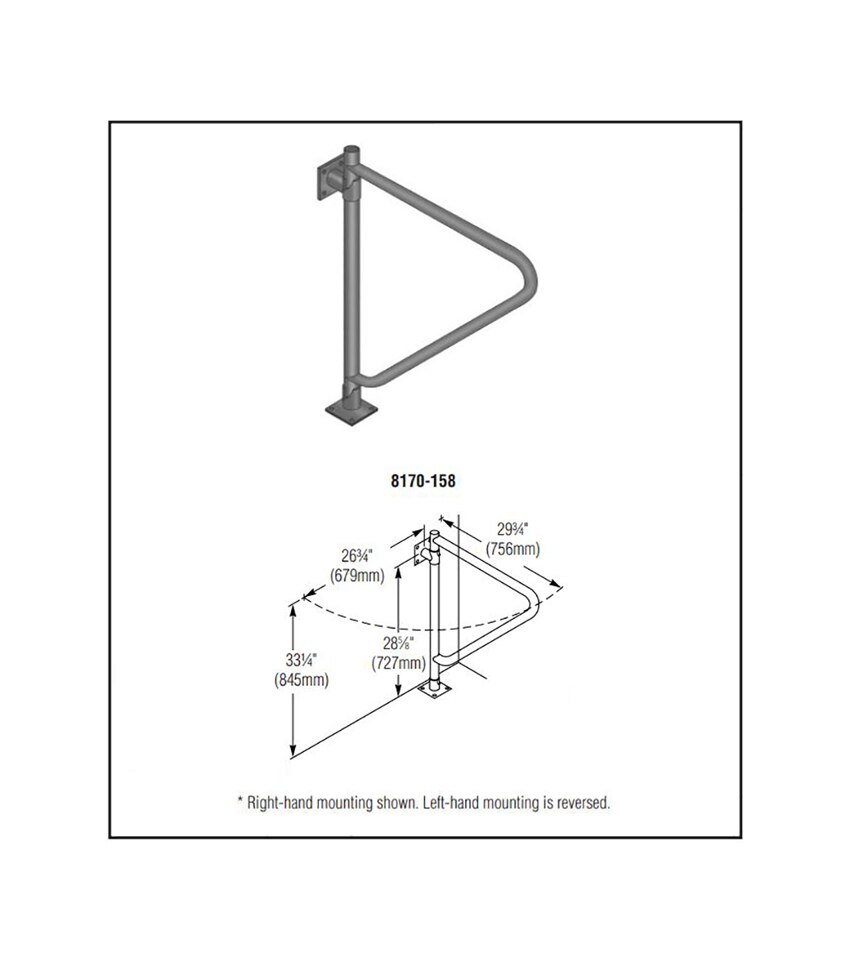

Measurement Diagram:

Type: Swing-Away Grab Bar
Primary Material: Stainless Steel
Mount Type: Exposed
Outside Diameter: 1-1/2"
Rated Width: 29-3/4"
Rated Length: 33-1/4"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 250 lbs.
Bariatric: No
Antimicrobial: No
Overall Dimensions: 4" Wide x 33-1/4" Tall x 29-3/4" Deep
Shipping Dimensions: 37" Length x 34" Width x 4" Height
Shipping Weight: 16.3 lbs.
UPC / GTIN: 84241008773
Manufacturer Model No.: 8170-158000
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited


This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
